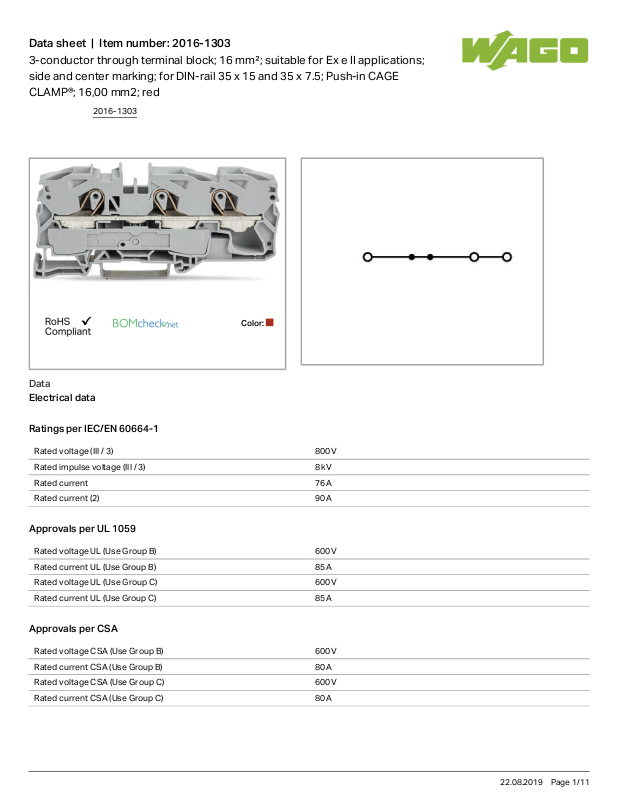

Wago 2016-1303 Data Sheet

Data sheet | Item number:2016-1303

3-conductor through terminal block; 16 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®; 16,00 mm2; red

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 76 A

Rated current (2) 90 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 85 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 85 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 80 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 80 A

2016-1303

22.08.2019Page /1 11

Data sheet | Item number:2016-1303

Approvals Ex

Rated voltage EN (Ex e II) 550 V

Rated current (Ex e II) 67 A

Rated current (Ex e II) with jumper 65 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 16mm²/ 20 6AWG

Solid conductor, push-in termination 6 16mm²/ 14 6AWG

Fine-stranded conductor 0.5 25mm²/ 20 4AWG

Strip length 18 20mm/ 0.71 0.79inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 91.8mm/ 3.622inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color red

Insulating material Polyamide 66 (PA 66)

Fire load 0.376 MJ

Weight 26.712g

2016-1303

22.08.2019Page /2 11

Data sheet | Item number:2016-1303

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821378365

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.9

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.9

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

05.0015 U

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

05.0015 U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

CCA

EN 60947 2172580.01

2016-1303

22.08.2019Page /3 11

Data sheet | Item number:2016-1303

DEKRA Certification B.V.

CSA

DEKRA Certification B.V.

C22.2 No. 158 1579112

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0

CCA

DEKRA Certification B.V.

EN 60947 2172580.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

CSA

DEKRA Certification B.V.

C22.2 No. 158 1579112

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA
