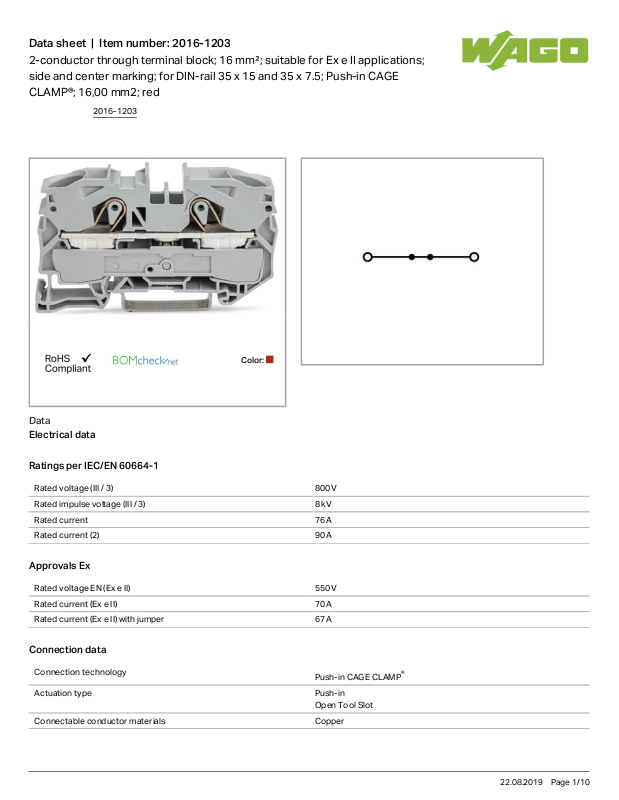

Data sheet | Item number:2016-1203
2-conductor through terminal block; 16 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®; 16,00 mm2; red
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 76 A
Rated current (2) 90 A
Approvals Ex
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 70 A
Rated current (Ex e II) with jumper 67 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
2016-1203
22.08.2019Page /1 10
Page 2
Data sheet | Item number:2016-1203
Nominal cross section 16mm²
Solid conductor 0.5 16mm²/ 20 6AWG
Solid conductor, push-in termination 6 16mm²/ 14 6AWG
Fine-stranded conductor 0.5 25mm²/ 20 4AWG
Strip length 18 20mm/ 0.71 0.79inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 12mm/ 0.472inch
Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch
Depth 69.8mm/ 2.748inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color red
Insulating material Polyamide 66 (PA 66)
Weight 22.764g
Commercial data
Country of origin DE
GTIN 4055143786003
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.9
2016-1203
22.08.2019Page /2 10
Page 3
Data sheet | Item number:2016-1203
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.9
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
05.0015 U
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
05.0015 U
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2172580.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7294
CSA
DEKRA Certification B.V.
C22.2 No. 158 1579112
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
BV
EN 60947 38586/A0
2016-1203
22.08.2019Page /3 10
Page 4
Data sheet | Item number:2016-1203
Bureau Veritas S.A.
CCA
DEKRA Certification B.V.
EN 60947 2172580.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7294
CSA
DEKRA Certification B.V.
C22.2 No. 158 1579112
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
2016-1203
22.08.2019Page /4 10
Page 5
Data sheet | Item number:2016-1203
UL
UL International Germany GmbH
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
