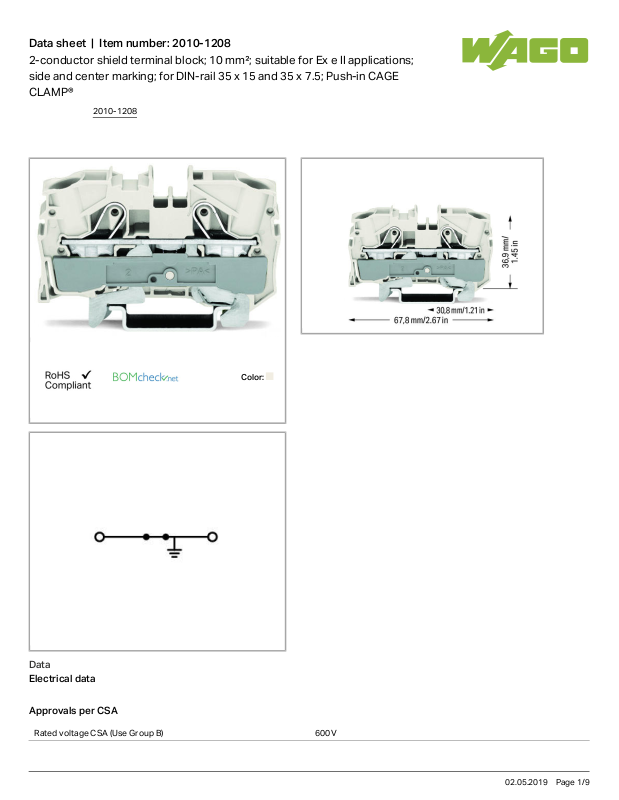

Wago 2010-1208 Data Sheet

Data sheet | Item number:2010-1208

2-conductor shield terminal block; 10 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Data

Electrical data

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

2010-1208

02.05.2019Page /1 9

Data sheet | Item number:2010-1208

Rated current CSA (Use Group B) 65 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 65 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 10mm²

Solid conductor 0.5 … 16mm²/ 20 … 6AWG

Solid conductor, push-in termination 4 … 16mm²/ 14 … 6AWG

Fine-stranded conductor 0.5 … 16mm²/ 20 … 6AWG

Strip length 17 … 19mm/ 0.67 … 0.75inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 67.8mm/ 2.669inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color white

Insulating material Polyamide 66 (PA 66)

Fire load 0.246 MJ

Weight 28.449g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

2010-1208

02.05.2019Page /2 9

Data sheet | Item number:2010-1208

GTIN 4050821189138

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.11

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7089

CSA

DEKRA Certification B.V.

C22.2 No. 158 70111238

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172
