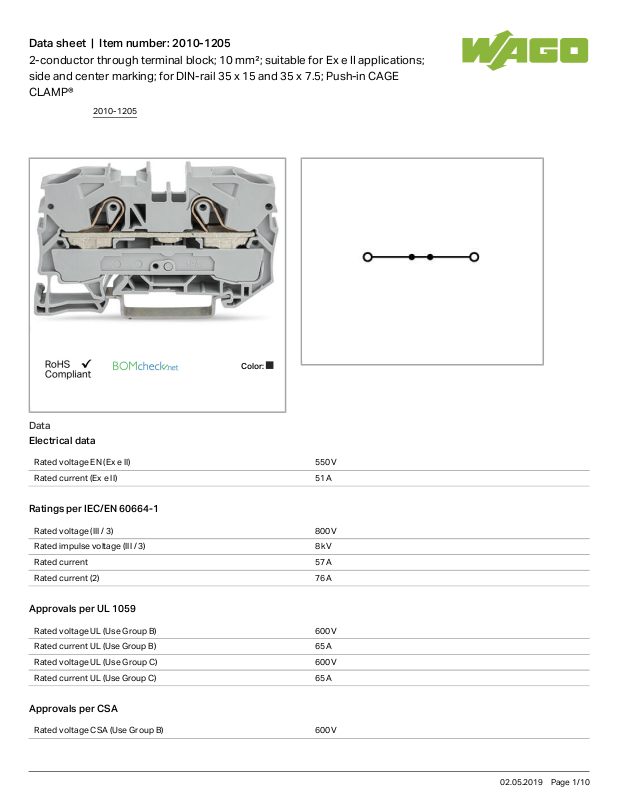

Data sheet | Item number:2010-1205
2-conductor through terminal block; 10 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 51 A
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 57 A
Rated current (2) 76 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 65 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 65 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
2010-1205
02.05.2019Page /1 10
Data sheet | Item number:2010-1205
Rated current CSA (Use Group B) 65 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 65 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 10mm²
Solid conductor 0.5 … 16mm²/ 20 … 6AWG
Solid conductor, push-in termination 4 … 16mm²/ 14 … 6AWG
Fine-stranded conductor 0.5 … 16mm²/ 20 … 6AWG
Strip length 17 … 19mm/ 0.67 … 0.75inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 10mm/ 0.394inch
Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch
Depth 67.8mm/ 2.669inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color black
Insulating material Polyamide 66 (PA 66)
Fire load 0.255 MJ
Weight 16.056g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
2010-1205
02.05.2019Page /2 10
Data sheet | Item number:2010-1205
GTIN 4050821809227
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.21
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1070 U (II
2 G Ex eII
bzw.I M2
Ex eI)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
06.0003 U
(Ex e IIC
Gb and Ex
e I Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7089
CCA
DEKRA Certification B.V.
EN 60947 2160584.11
CSA
DEKRA Certification B.V.
C22.2 No. 158 70111238
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
2010-1205
02.05.2019Page /3 10
Data sheet | Item number:2010-1205
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
End plate
Item no.: 2010-1291
End and intermediate plate; 1 mm thick
2010-1291
Item no.: 2010-1292
End and intermediate plate; 1 mm thick
2010-1292
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
check
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 2010-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2010-511
2010-1205
02.05.2019Page /4 10
Data sheet | Item number:2010-1205
Item no.: 2010-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2010-549
ferrule
Item no.: 216-284
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-284
Item no.: 216-286
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-286
Item no.: 216-287
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-287
Item no.: 216-288
Ferrule; Sleeve for 6 mm² / AWG 10; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-288
Item no.: 216-289
Ferrule; Sleeve for 10 mm² / AWG 8; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-289
Protective Warning Marker
Item no.: 2010-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2010-115
Item no.: 2016-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2016-115
Jumper
Item no.: 2010-402
Push-in type jumper bar; insulated; 2-way; Nominal current 57 A
2010-402
Item no.: 2010-403
Push-in type jumper bar; insulated; 3-way; Nominal current 57 A
2010-403
Item no.: 2010-404
Push-in type jumper bar; insulated; 4-way; Nominal current 57 A
2010-404
Item no.: 2010-405
Push-in type jumper bar; insulated; 5-way; Nominal current 57 A
2010-405
Item no.: 2010-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2010-405
/011-000
Item no.: 2010-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 57 A
2010-433
Item no.: 2010-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 57 A
2010-434
Item no.: 2010-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 57 A
2010-435
Item no.: 2016-499
Step-down jumper; insulated; from 16/10 mm² to 10/6/4/2.5 mm²; Nominal current 57 A
2016-499
2010-1205
02.05.2019Page /5 10
Data sheet | Item number:2010-1205
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Item no.: 285-430
Step-down jumper; insulated; from 285-13x to 2010 and 2016 Series TOPJOB®S terminal blocks;
Nominal current 90 A
285-430
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
2010-1205
02.05.2019Page /6 10
Data sheet | Item number:2010-1205
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
2010-1205
02.05.2019Page /7 10
Data sheet | Item number:2010-1205
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
2010-1205
02.05.2019Page /8 10
Data sheet | Item number:2010-1205
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
tools
Item no.: 210-721
Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm
210-721
General accessories
Item no.: 2010-100
Finger guard; touchproof cover protects unused conductor entries
2010-100
Carrier rail
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Downloads
Documentation
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2010-1205 URL Download
2010-1205
02.05.2019Page /9 10
Data sheet | Item number:2010-1205
2010-1205
Subject to changes.
02.05.2019Page /10 10
Loading...
