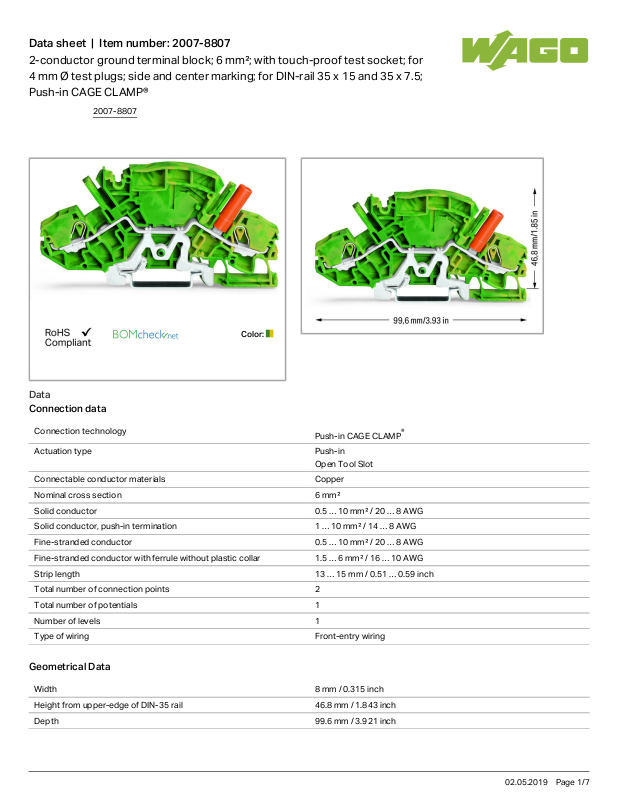

Data sheet | Item number:2007-8807
2-conductor ground terminal block; 6 mm²; with touch-proof test socket; for 4 mm Ø test plugs; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Solid conductor, push-in termination 1 … 10mm²/ 14 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Fine-stranded conductor with ferrule without plastic collar 1.5 … 6mm²/ 16 … 10AWG
Strip length 13 … 15mm/ 0.51 … 0.59inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch
Height from upper-edge of DIN-35 rail 46.8mm/ 1.843inch
Depth 99.6mm/ 3.921inch
2007-8807
02.05.2019Page /1 7
Data sheet | Item number:2007-8807
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.359 MJ
Weight 30.008g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4055143074773
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7323
CCA
DEKRA Certification B.V.
EN 60947 2198208.01
CSA
DEKRA Certification B.V.
C22.2 No. 158 70009679
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Certificate
2007-8807
02.05.2019Page /2 7
Data sheet | Item number:2007-8807
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 E45172

Compatible products

Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Protective Warning Marker
Item no.: 2006-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2006-115
ferrule
Item no.: 216-208 Ferrule; Sleeve for 6 mm² / AWG 10; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-208
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-263
2007-8807
02.05.2019Page /3 7

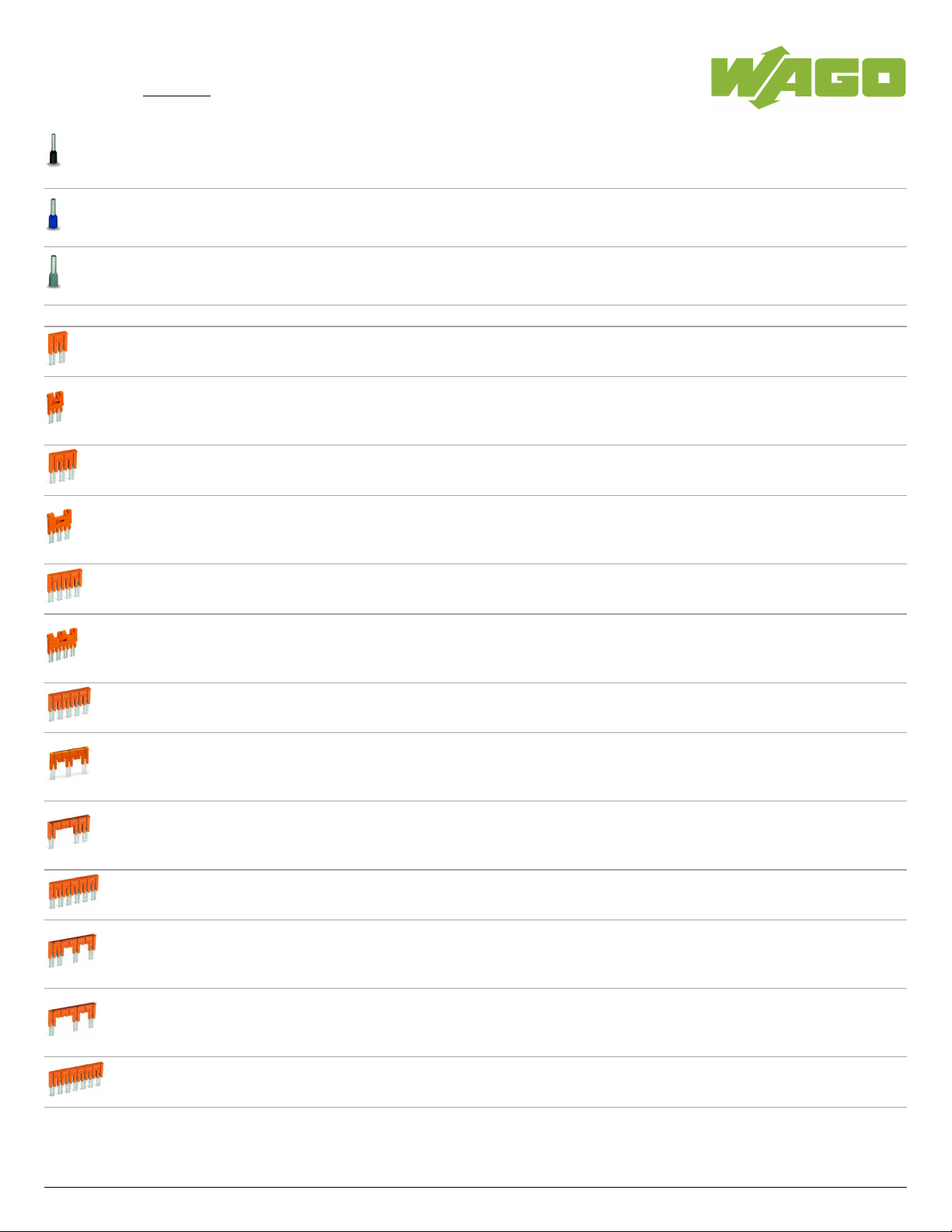

Data sheet | Item number:2007-8807
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-267 Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-267
Jumper
Item no.: 282-432 Jumper; insulated; 2-way; Nominal current 30 A
282-432
Item no.: 282-432/100-000
Jumper with safety lid; insulated; 2-way; Nominal current 30 A
282-432
/100-000
Item no.: 282-433 Jumper; insulated; 3-way; Nominal current 30 A
282-433
Item no.: 282-433/100-000
Jumper with safety lid; insulated; 3-way; Nominal current 30 A
282-433
/100-000
Item no.: 282-434 Jumper; insulated; 4-way; Nominal current 30 A
282-434
Item no.: 282-434/100-000
Jumper with safety lid; insulated; 4-way; Nominal current 30 A
282-434
/100-000
Item no.: 282-435 Jumper; insulated; 5-way; Nominal current 30 A
282-435
Item no.: 282-435/011-000
Jumper; insulated; 3-way (1-3-5); Nominal current 30 A; special version
282-435
/011-000
Item no.: 282-435/301-000
Jumper
282-435
/301-000
Item no.: 282-436 Jumper; insulated; 6-way; Nominal current 30 A
282-436
Item no.: 282-436/301-000
Jumper; insulated; 1-2-4-6; Nominal current 30 A; special version
282-436
/301-000
Item no.: 282-436/304-000
Jumper
282-436
/304-000
Item no.: 282-437 Jumper; insulated; 7-way; Nominal current 30 A
282-437
2007-8807
02.05.2019Page /4 7

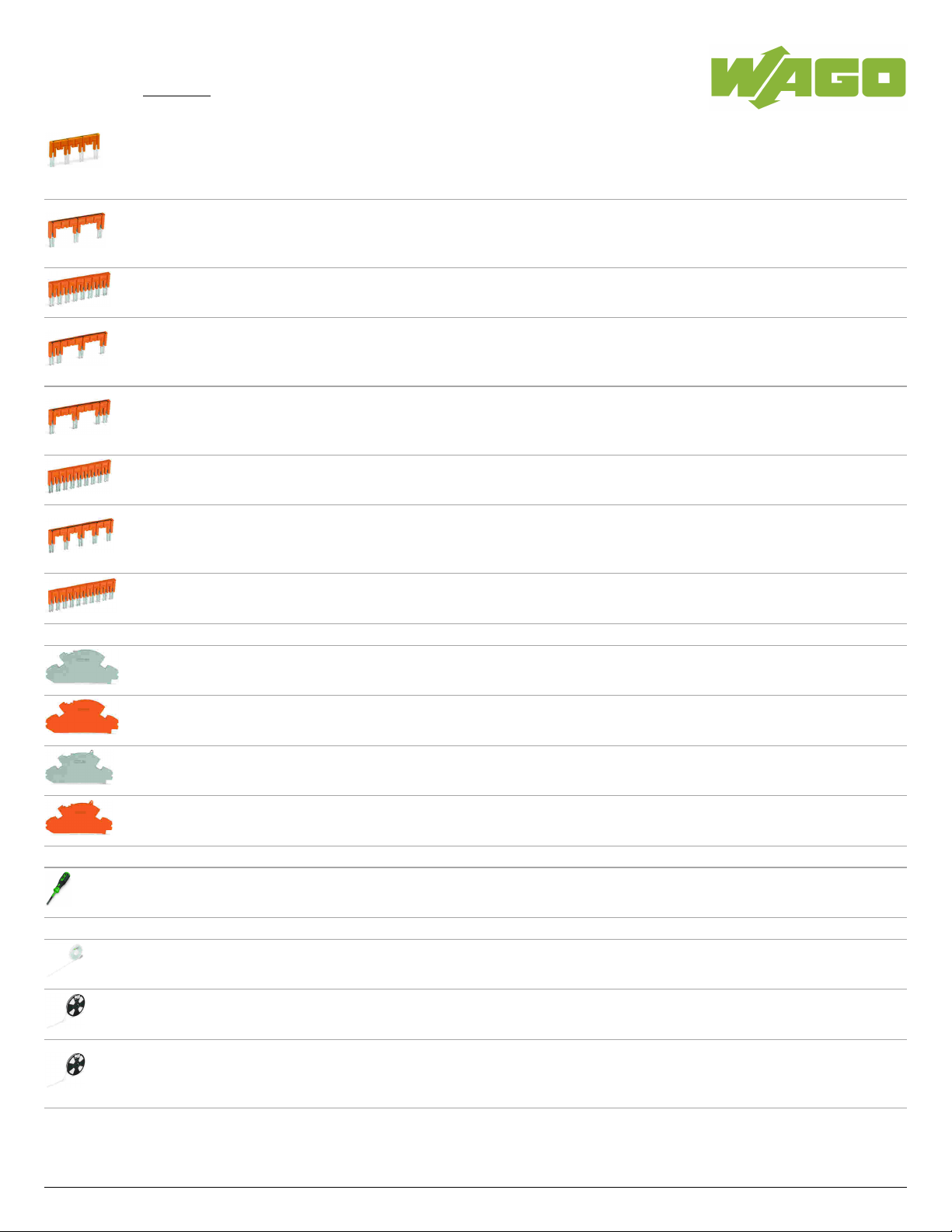

Data sheet | Item number:2007-8807
Item no.: 282-437/011-000
Jumper; insulated; 1-3-5-7; Nominal current 30 A; special version
282-437
/011-000
Item no.: 282-437/012-000
Jumper; insulated; 1-4-7; Nominal current 30 A; special version
282-437
/012-000
Item no.: 282-438 Jumper; insulated; 8-way; Nominal current 30 A
282-438
Item no.: 282-438/300-000
Jumper; insulated; 1-2-5-8; Nominal current 30 A; special version
282-438
/300-000
Item no.: 282-438/301-000
Jumper; insulated; 1-4-7-8; Nominal current 30 A; special version
282-438
/301-000
Item no.: 282-439 Jumper; insulated; 9-way; Nominal current 30 A
282-439
Item no.: 282-439/011-000
Jumper; insulated; 1-3-5-7-9; Nominal current 30 A; special version
282-439
/011-000
Item no.: 282-440 Jumper; insulated; 10-way; Nominal current 30 A
282-440
End plate
Item no.: 2007-8891
End and separator plate; 1.5 mm thick; without lock-out seal option
2007-8891
Item no.: 2007-8892
End and separator plate; 1.5 mm thick; without lock-out seal option
2007-8892
Item no.: 2007-8893
End and separator plate; 1.5 mm thick; with lock-out seal option
2007-8893
Item no.: 2007-8894
End and separator plate; 1.5 mm thick; with lock-out seal option
2007-8894
tools
Item no.: 210-721 Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm
210-721
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
2007-8807
02.05.2019Page /5 7
Data sheet | Item number:2007-8807
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-198
Adaptor
2009-198
Item no.: 793-501 WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
2007-8807
02.05.2019Page /6 7
Data sheet | Item number:2007-8807
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024

Downloads

Documentation

Bid Text
2007-8807 docx
15.7 kB
Download
Additional Information
pdf
2.1 MB
Download

CAD/CAE - Smart Data

CAD data
3D Download 2007-8807 URL Download
2007-8807
Subject to changes.
02.05.2019Page /7 7
