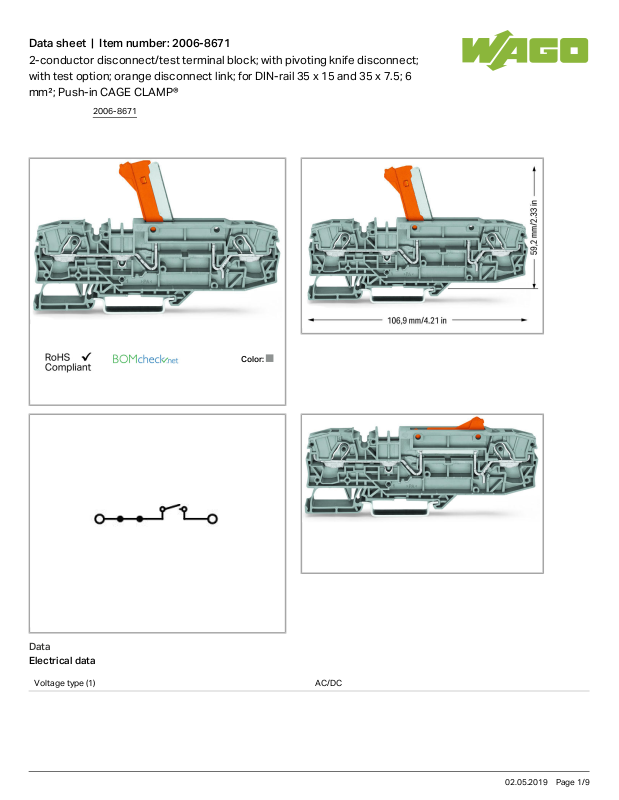

Wago 2006-8671 Data Sheet

Data sheet | Item number:2006-8671

2-conductor disconnect/test terminal block; with pivoting knife disconnect;
with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 6
mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Voltage type (1) AC/DC

2006-8671

02.05.2019Page /1 9

Data sheet | Item number:2006-8671

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V

Rated impulse voltage (III / 3) 12 kV

Rated current 30 A

Rated voltage (III / 3) 2 1500 V

Rated impulse voltage (III / 3) 2 12 kV

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 30 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 30 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 30 A

Rated voltage CSA (Use Group C) 1000V

Rated current CSA (Use Group C) 30 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 6mm²

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Strip length 13 … 15mm/ 0.51 … 0.59inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 15mm/ 0.591inch

Height from upper-edge of DIN-35 rail 33mm/ 1.299inch

2006-8671

02.05.2019Page /2 9

Data sheet | Item number:2006-8671

Depth 106.9mm/ 4.209inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.673 MJ

Weight 31.425g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821372509

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

IEC 60947 NTR NL

7311

CCA

DEKRA Certification B.V.

IEC 60947 71-

101179

CSA

DEKRA Certification B.V.

C22.2 No. 158 1543858

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

2006-8671

02.05.2019Page /3 9
