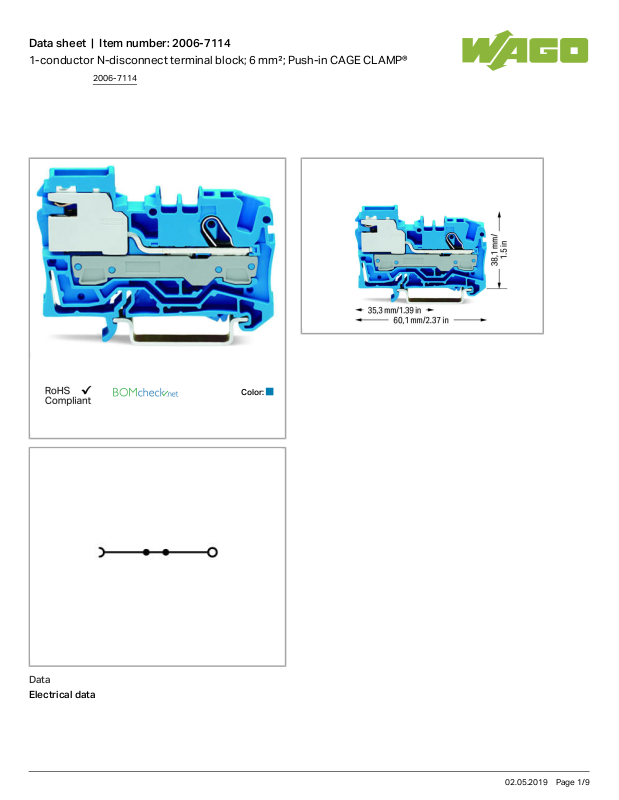

Wago 2006-7114 Data Sheet
Data sheet | Item number:2006-7114
1-conductor N-disconnect terminal block; 6 mm²; Push-in CAGE CLAMP®
Color:
Data
Electrical data
2006-7114
02.05.2019Page /1 9
Data sheet | Item number:2006-7114
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 51 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Strip length 13 … 15mm/ 0.51 … 0.59inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 7.5mm/ 0.295inch
Height from upper-edge of DIN-35 rail 38.1mm/ 1.5inch
Depth 60mm/ 2.362inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.226 MJ
Weight 14.564g
2006-7114
02.05.2019Page /2 9
Data sheet | Item number:2006-7114
Commercial data
Product Group 22 (TOPJOB S)
Country of origin PL
GTIN 4044918989855
Customs Tariff No. 85365080990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
IEC 60947 NTR NL
7311
CCA
DEKRA Certification B.V.
IEC 60947 71-
101179
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Compatible products
2006-7114
