Wago 2006-1681/1000-413 Data Sheet

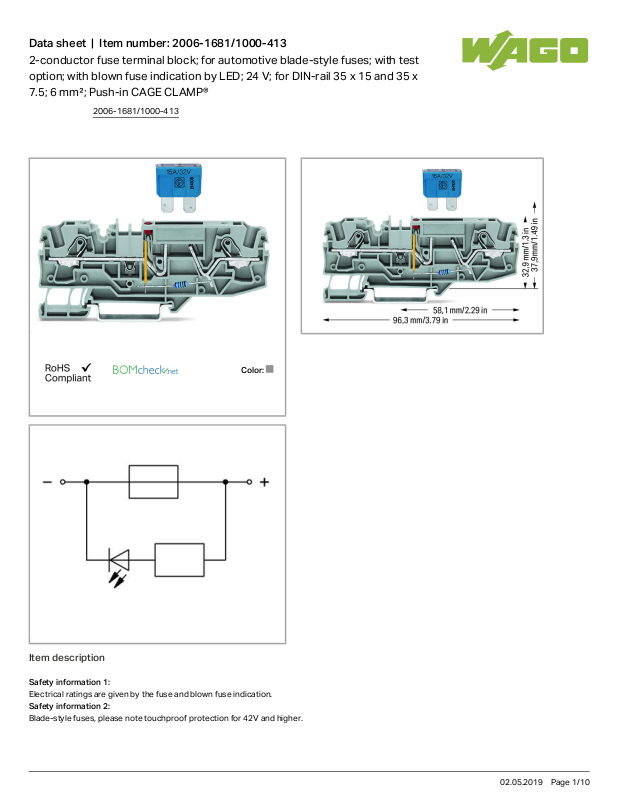

Data sheet | Item number:2006-1681/1000-413

2-conductor fuse terminal block; for automotive blade-style fuses; with test
option; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x

7.5; 6 mm²; Push-in CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse and blown fuse indication.

Safety information 2:

Blade-style fuses, please note touchproof protection for 42V and higher.

2006-1681/1000-413

02.05.2019Page /1 10

Data sheet | Item number:2006-1681/1000-413

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 8 kV

Rated current 25 A

Rated current (2) 30 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 24 V

Rated current UL (Use Group B) 30 A

Rated voltage UL (Use Group C) 24V

Rated current UL (Use Group C) 30 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 30 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 30 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 6mm²

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Strip length 13 … 15mm/ 0.51 … 0.59inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

2006-1681/1000-413

02.05.2019Page /2 10

Data sheet | Item number:2006-1681/1000-413

Geometrical Data

Width 7.5mm/ 0.295inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 96.3mm/ 3.791inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 18g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454789640

Customs Tariff No. 85369095990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

IEC 60947 NTR NL

7311

CCA

DEKRA Certification B.V.

IEC 60947 71-

101179

CSA

DEKRA Certification B.V.

C22.2 No. 158 1543858

Ship Approvals

Certificate

2006-1681/1000-413

02.05.2019Page /3 10
