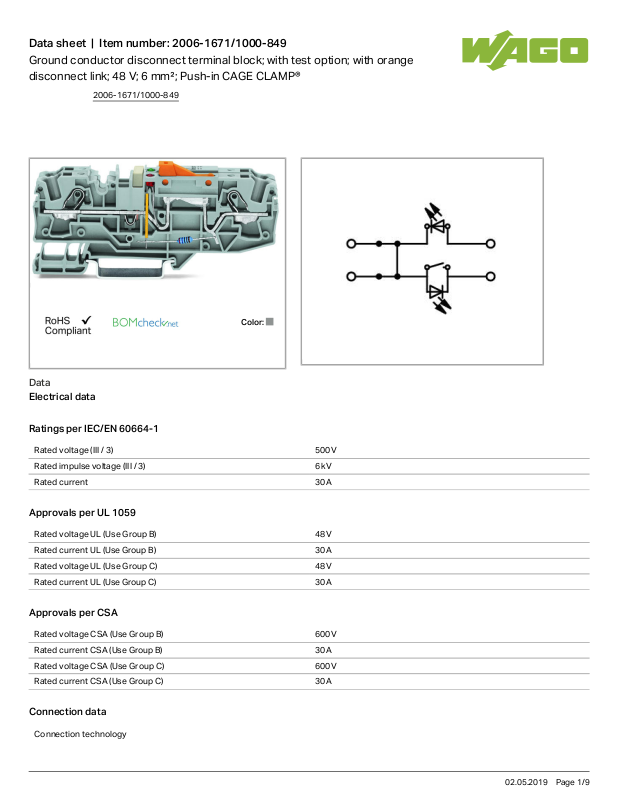

Wago 2006-1671/1000-849 Data Sheet

Data sheet | Item number:2006-1671/1000-849

Ground conductor disconnect terminal block; with test option; with orange
disconnect link; 48 V; 6 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 30 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 48 V

Rated current UL (Use Group B) 30 A

Rated voltage UL (Use Group C) 48V

Rated current UL (Use Group C) 30 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 30 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 30 A

Connection data

Connection technology

2006-1671/1000-849

02.05.2019Page /1 9

Data sheet | Item number:2006-1671/1000-849

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 6mm²

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Strip length 13 … 15mm/ 0.51 … 0.59inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 4

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 15mm/ 0.591inch

Height from upper-edge of DIN-35 rail 36.8mm/ 1.449inch

Depth 96.3mm/ 3.791inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 41.8g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454789855

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

2006-1671/1000-849

02.05.2019Page /2 9

Data sheet | Item number:2006-1671/1000-849

Logo

Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

IEC 60947 71-

101179

CCA

DEKRA Certification B.V.

IEC 60947 NTR NL

7311

CSA

DEKRA Certification B.V.

C22.2 No. 158 1543858

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products
