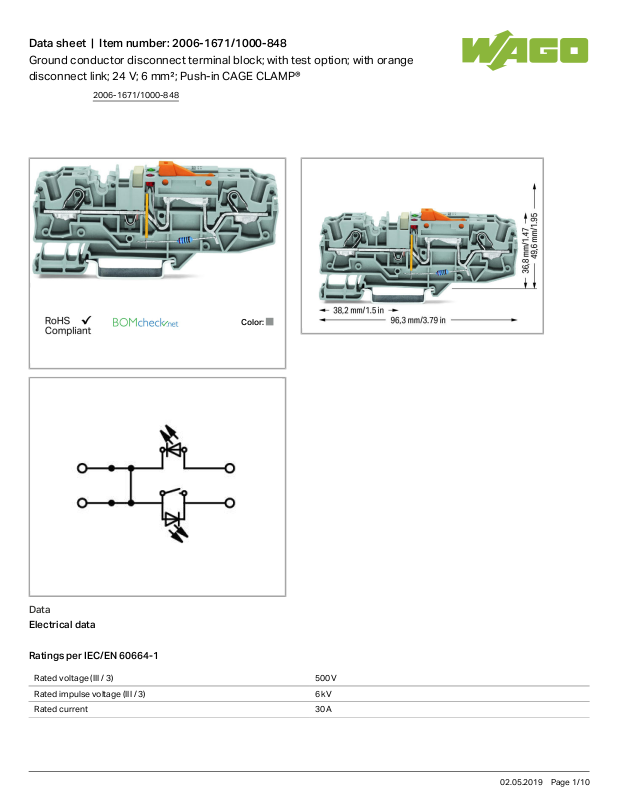

Data sheet | Item number:2006-1671/1000-848
Ground conductor disconnect terminal block; with test option; with orange
disconnect link; 24 V; 6 mm²; Push-in CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 30 A
2006-1671/1000-848
02.05.2019Page /1 10
Data sheet | Item number:2006-1671/1000-848
Approvals per UL 1059
Rated voltage UL (Use Group B) 24 V
Rated current UL (Use Group B) 30 A
Rated voltage UL (Use Group C) 24V
Rated current UL (Use Group C) 30 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 30 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 30 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Strip length 13 … 15mm/ 0.51 … 0.59inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 4
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 15mm/ 0.591inch
Height from upper-edge of DIN-35 rail 36.8mm/ 1.449inch
Depth 96.3mm/ 3.791inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
2006-1671/1000-848
02.05.2019Page /2 10
Data sheet | Item number:2006-1671/1000-848
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 40.6g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4045454789848
Customs Tariff No. 85365080990
