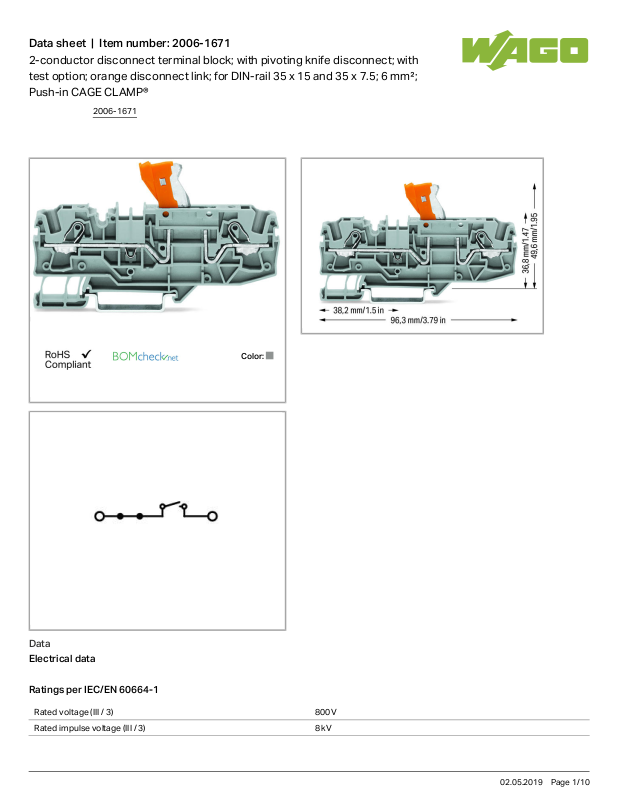

Wago 2006-1671 Data Sheet

Data sheet | Item number:2006-1671
2-conductor disconnect terminal block; with pivoting knife disconnect; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
2006-1671
02.05.2019Page /1 10
Data sheet | Item number:2006-1671
Rated current 30 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 30 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 30 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 30 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 30 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Strip length 13 … 15mm/ 0.51 … 0.59inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 7.5mm/ 0.295inch
Height from upper-edge of DIN-35 rail 36.8mm/ 1.449inch
Depth 96.3mm/ 3.791inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
2006-1671
02.05.2019Page /2 10
Data sheet | Item number:2006-1671
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.341 MJ
Weight 19.5g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4050821182078
Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
IEC 60947 NTR NL
7311
CCA
DEKRA Certification B.V.
IEC 60947 71-
101179
CSA
DEKRA Certification B.V.
C22.2 No. 158 1543858
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
2006-1671
02.05.2019Page /3 10
