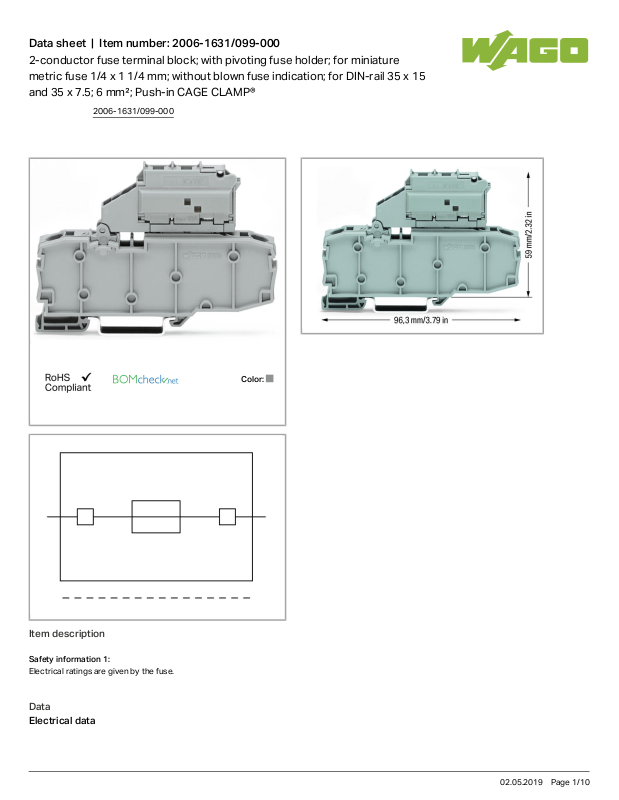

Wago 2006-1631/099-000 Data Sheet

Data sheet | Item number:2006-1631/099-000

2-conductor fuse terminal block; with pivoting fuse holder; for miniature
metric fuse 1/4 x 1 1/4 mm; without blown fuse indication; for DIN-rail 35 x 15
and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse.

Data

Electrical data

2006-1631/099-000

02.05.2019Page /1 10

Data sheet | Item number:2006-1631/099-000

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 10 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 15 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 6mm²

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Solid conductor, push-in termination 1 … 10mm²/ 14 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Strip length 13 … 15mm/ 0.51 … 0.59inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 10.4mm/ 0.409inch

Height from upper-edge of DIN-35 rail 59mm/ 2.323inch

Depth 96.3mm/ 3.791inch

Mechanical data

Design horizontal

2006-1631/099-000

02.05.2019Page /2 10

Data sheet | Item number:2006-1631/099-000

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.584 MJ

Weight 28.76g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454821203

Customs Tariff No. 85369095990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

IEC 60947 71-

101179

CCA

DEKRA Certification B.V.

IEC 60947 NTR NL

7311

CSA

DEKRA Certification B.V.

C22.2 No. 158 1543858

CSA

DEKRA Certification B.V.

C22.2 No. 158 1543858

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

- TAE00001V2
