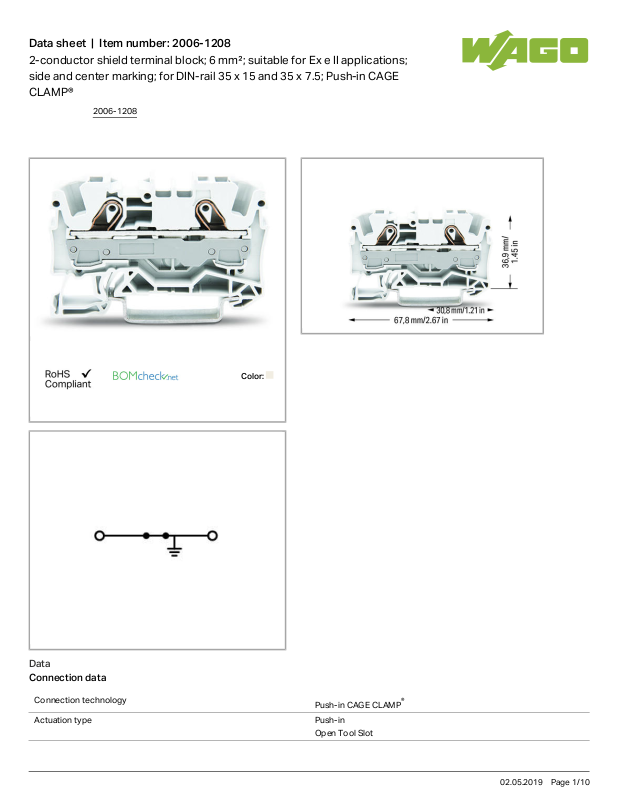

Data sheet | Item number:2006-1208
2-conductor shield terminal block; 6 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®
Color:
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
2006-1208
02.05.2019Page /1 10
Data sheet | Item number:2006-1208
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Strip length 13 … 15mm/ 0.51 … 0.59inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 7.5mm/ 0.295inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 57.5mm/ 2.264inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color white
Insulating material Polyamide 66 (PA 66)
Fire load 0.154 MJ
Weight 17.294g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4050821189121
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
IEC 60947 NTR NL
7311
2006-1208
02.05.2019Page /2 10
Data sheet | Item number:2006-1208
DEKRA Certification B.V. 7311
CCA
DEKRA Certification B.V.
IEC 60947 71-
101179
CSA
DEKRA Certification B.V.
C22.2 No. 158 1543858
CSA
DEKRA Certification B.V.
C22.2 No. 158 1543858
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
