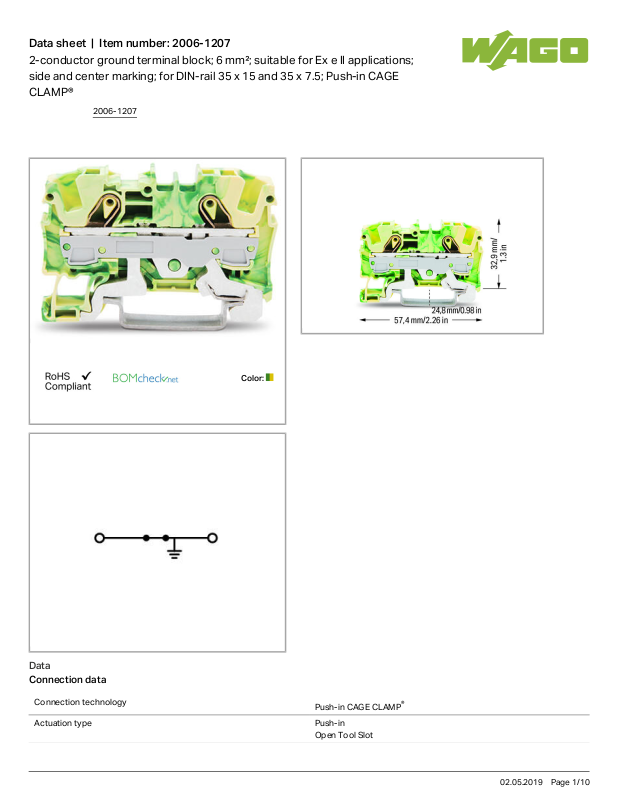

Wago 2006-1207 Data Sheet
Data sheet | Item number: 2006-1207
2-conductor ground terminal block; 6 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®
2006-1207
Color:
Data
Connection data
Connection technology |
Push-in CAGE CLAMP® |
Actuation type |
Push-in |
|
Open Tool Slot |
02.05.2019 Page 1/10
Data sheet | Item number: 2006-1207
2006-1207
Connectable conductor materials
Nominal cross section
Solid conductor
Solid conductor, push-in termination Fine-stranded conductor
Strip length
Note (conductor cross-section)
Total number of connection points Total number of potentials Number of levels
Type of wiring
Geometrical Data
Width
Height from upper-edge of DIN-35 rail
Depth
Mechanical data
Design
Type of mounting
Marking level
Material Data
Color
Insulating material
Fire load
Weight
Commercial data
Product Group
Country of origin
GTIN
Customs Tariff No.
Approvals / Certificates
Country specific Approvals
Logo Approval
CCA
Copper 6 mm²
0.5 … 10 mm² / 20 … 8 AWG
2.5 … 10 mm² / 14 … 8 AWG
0.5 … 10 mm² / 20 … 8 AWG
13 … 15 mm / 0.51 … 0.59 inch
Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
2
1
1
Front-entry wiring
7.5 mm / 0.295 inch
32.9 mm / 1.295 inch
57.5 mm / 2.264 inch
horizontal DIN-35 rail
Center/side marking
green-yellow Polyamide 66 (PA 66) 0.15MJ
17.164g
22 (TOPJOB S) DE 4017332999670 85369010000
Additional Approval Text |
Certificate |
name |
|
IEC 60947 |
NTR NL |
02.05.2019 Page 2/10
Data sheet | Item number: 2006-1207
|
2006-1207 |
|
|
|
|
DEKRA Certification B.V. |
|
7311 |
|
|
CCA |
IEC 60947 |
71- |
|
|
DEKRA Certification B.V. |
|
101179 |
|
|
CSA |
C22.2 No. 158 |
1543858 |
|
|
DEKRA Certification B.V. |
|
|
|
|
CSA |
C22.2 No. 158 |
1543858 |
|
|
DEKRA Certification B.V. |
|
|
|
Ship Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
ABS |
EN 60947 |
14- |
|
|
American Bureau of Shipping |
|
HG1293677- |
|
|
|
|
PDA |
|
|
BV |
EN 60947 |
38586/A0 BV |
|
|
Bureau Veritas S.A. |
|
|
|
|
DNV GL |
- |
TAE00001V2 |
|
|
Det Norske Veritas, Germanischer Lloyd |
|
|
|
|
LR |
EN 60947 |
91/20112 |
|
|
Lloyds Register |
|
(E9) |
|
UL-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
UL |
UL 1059 |
E45172 |
|
|
UL International Germany GmbH |
|
|
02.05.2019 Page 3/10
