Wago 2006-1204 Data Sheet

Data sheet | Item number:2006-1204

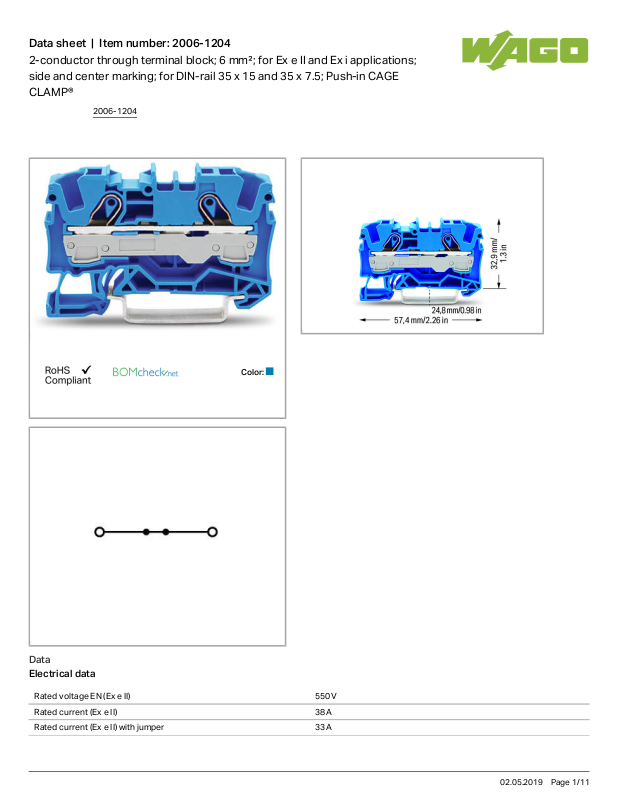

2-conductor through terminal block; 6 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Electrical data

Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 38 A
Rated current (Ex e II) with jumper 33 A
2006-1204
02.05.2019Page /1 11
Data sheet | Item number:2006-1204
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 41 A
Rated current (2) 57 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 50 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 50 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 50 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 50 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Solid conductor, push-in termination 2.5 … 10mm²/ 14 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Strip length 13 … 15mm/ 0.51 … 0.59inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 7.5mm/ 0.295inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 57.5mm/ 2.264inch
2006-1204
02.05.2019Page /2 11
Data sheet | Item number:2006-1204
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.154 MJ
Weight 8.975g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332999656
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX 1030 U (II 2 G Ex eII bzw. IM 2 Exe I)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
05.0014 U (Ex eIIC Gb and Ex eI Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
IEC 60947 NTR NL
7311
CCA
DEKRA Certification B.V.
IEC 60947 71-
101179
2006-1204
02.05.2019Page /3 11
Data sheet | Item number:2006-1204
CSA
DEKRA Certification B.V.
C22.2 No. 158 1543858
CSA
DEKRA Certification B.V.
C22.2 No. 158 1543858
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172

Compatible products

Jumper
2006-1204
02.05.2019Page /4 11
