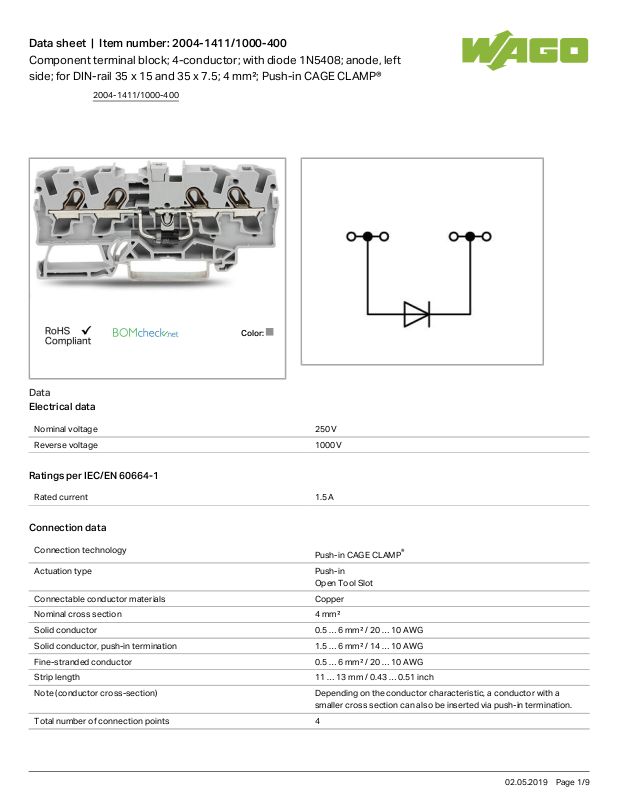

Wago 2004-1411/1000-400 Data Sheet

Data sheet | Item number:2004-1411/1000-400

Component terminal block; 4-conductor; with diode 1N5408; anode, left
side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Nominal voltage 250 V

Reverse voltage 1000V

Ratings per IEC/EN 60664-1

Rated current 1.5 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 4mm²

Solid conductor 0.5 … 6mm²/ 20 … 10AWG

Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG

Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG

Strip length 11 … 13mm/ 0.43 … 0.51inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

2004-1411/1000-400

02.05.2019Page /1 9

Data sheet | Item number:2004-1411/1000-400

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 78.7mm/ 3.098inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.188 MJ

Weight 11.475g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821230793

Customs Tariff No. 85369010000

Compatible products

Jumper

Item no.: 2004-402

Push-in type jumper bar; insulated; 2-way; Nominal current 32 A

2004-402

Item no.: 2004-403

Push-in type jumper bar; insulated; 3-way; Nominal current 32 A

2004-403

Item no.: 2004-404

2004-1411/1000-400

02.05.2019Page /2 9

Data sheet | Item number:2004-1411/1000-400

Item no.: 2004-404

Push-in type jumper bar; insulated; 4-way; Nominal current 32 A 2004-404

Item no.: 2004-405

Push-in type jumper bar; insulated; 5-way; Nominal current 32 A

2004-405

Item no.: 2004-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2004-405

/011-000

Item no.: 2004-406

Push-in type jumper bar; insulated; 6-way; Nominal current 32 A

2004-406

Item no.: 2004-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block

2004-406

/020-000

Item no.: 2004-407

Push-in type jumper bar; insulated; 7-way; Nominal current 32 A

2004-407

Item no.: 2004-408

Push-in type jumper bar; insulated; 8-way; Nominal current 32 A

2004-408

Item no.: 2004-409

Push-in type jumper bar; insulated; 9-way; Nominal current 32 A

2004-409

Item no.: 2004-410

Push-in type jumper bar; insulated; 10-way; Nominal current 32 A

2004-410

Item no.: 2004-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 32 A

2004-433

Item no.: 2004-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 32 A

2004-434

Item no.: 2004-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 32 A

2004-435

Item no.: 2004-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 32 A

2004-436

Item no.: 2004-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 32 A

2004-437

Item no.: 2004-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 32 A

2004-438

Item no.: 2004-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 32 A

2004-439

Item no.: 2004-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 32 A

2004-440

Item no.: 2006-499

Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A

2006-499

Item no.: 2016-499

Step-down jumper; insulated; from 16/10 mm² to 10/6/4/2.5 mm²; Nominal current 57 A

2016-499
