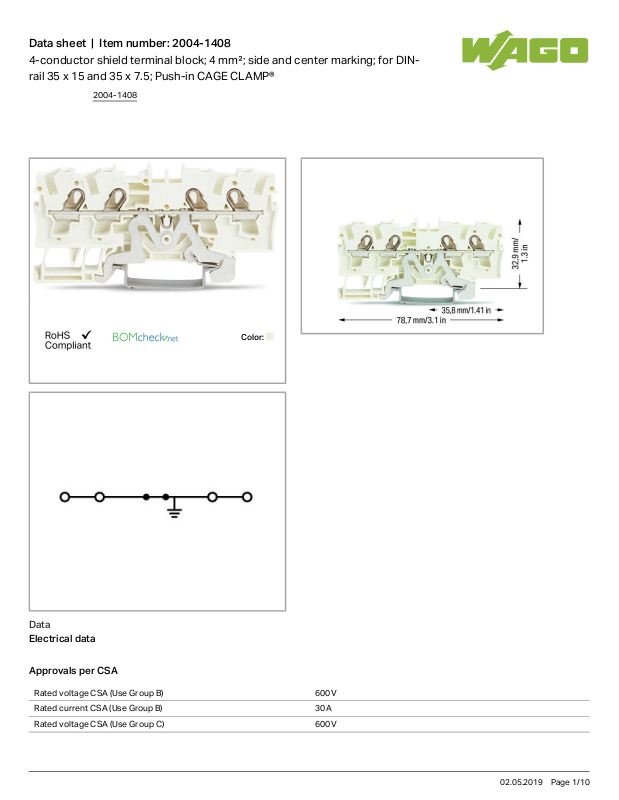

Data sheet | Item number:2004-1408
4-conductor shield terminal block; 4 mm²; side and center marking; for DINrail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®
Color:
Data
Electrical data
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 30 A
Rated voltage CSA (Use Group C) 600V
2004-1408
02.05.2019Page /1 10
Data sheet | Item number:2004-1408
Rated current CSA (Use Group C) 30 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.5 … 6mm²/ 20 … 10AWG
Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG
Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG
Strip length 11 … 13mm/ 0.43 … 0.51inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 78.7mm/ 3.098inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color white
Insulating material Polyamide 66 (PA 66)
Fire load 0.156 MJ
Weight 15.888g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4045454719500
Customs Tariff No. 85369010000
2004-1408
02.05.2019Page /2 10
Data sheet | Item number:2004-1408
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2160584.10
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7088
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645435
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
