Wago 2004-1311/1000-401 Data Sheet

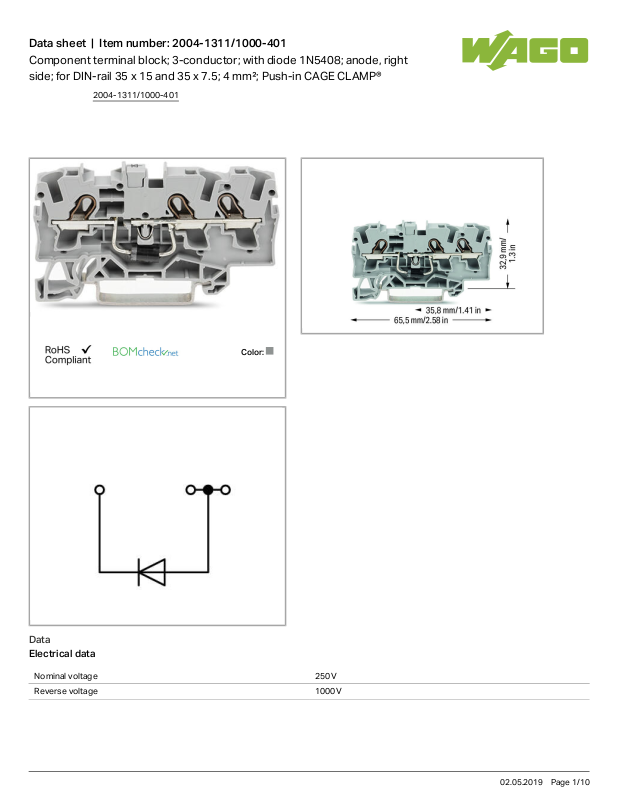

Data sheet | Item number:2004-1311/1000-401
Component terminal block; 3-conductor; with diode 1N5408; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; Push-in CAGE CLAMP®
Color:

Data

Electrical data

Nominal voltage 250 V
Reverse voltage 1000V
2004-1311/1000-401
02.05.2019Page /1 10
Data sheet | Item number:2004-1311/1000-401

Ratings per IEC/EN 60664-1

Rated current 1.5 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.5 … 6mm²/ 20 … 10AWG
Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG
Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG
Strip length 11 … 13mm/ 0.43 … 0.51inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 65.5mm/ 2.579inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.157 MJ
Weight 9.67g

Commercial data

Product Group 22 (TOPJOB S)
2004-1311/1000-401
02.05.2019Page /2 10
Data sheet | Item number:2004-1311/1000-401
Country of origin DE
GTIN 4050821230977
Customs Tariff No. 85369010000

Compatible products

Insulation stop
Item no.: 2004-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2004-171
Item no.: 2004-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2004-172
End plate
Item no.: 2004-1391
End and intermediate plate; 1 mm thick
2004-1391
Item no.: 2004-1392
End and intermediate plate; 1 mm thick
2004-1392
Item no.: 2004-1393
Separator plate; 2 mm thick; oversized
2004-1393
Item no.: 2004-1394
Separator plate; 2 mm thick; oversized
2004-1394
ferrule
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-267 Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-267
check
Item no.: 2004-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2004-511
2004-1311/1000-401
