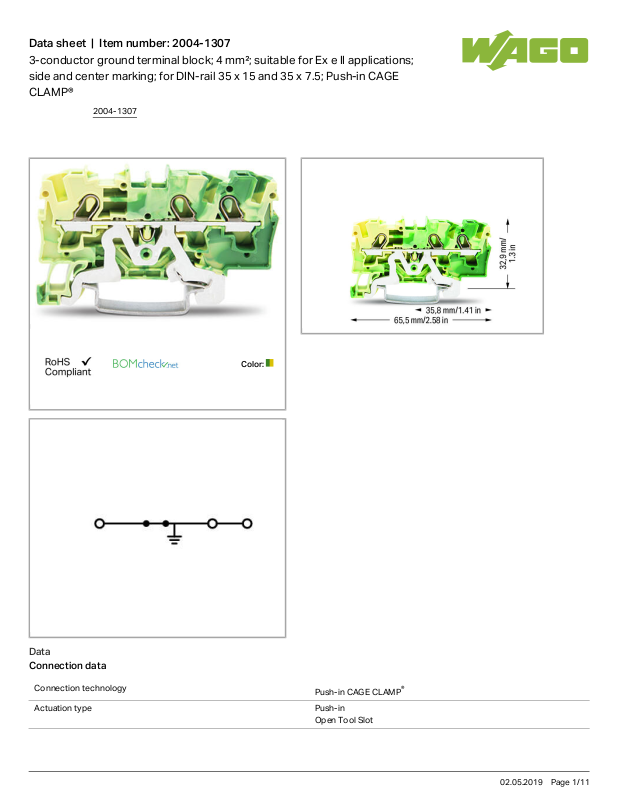

Wago 2004-1307 Data Sheet

Data sheet | Item number:2004-1307

3-conductor ground terminal block; 4 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

2004-1307

02.05.2019Page /1 11

Data sheet | Item number:2004-1307

Connectable conductor materials Copper

Nominal cross section 4mm²

Solid conductor 0.5 … 6mm²/ 20 … 10AWG

Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG

Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG

Strip length 11 … 13mm/ 0.43 … 0.51inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 65.5mm/ 2.579inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.15 MJ

Weight 14.58g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4017332071604

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

EN 60079 E185892

2004-1307

02.05.2019Page /2 11

Data sheet | Item number:2004-1307

Underwriters Laboratories Inc.

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1095 U (II
2 G/D Ex
eII bzw.I
M2 Ex eI)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.10

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7088

CSA

DEKRA Certification B.V.

C22.2 No. 158 1645435

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

2004-1307

02.05.2019Page /3 11

Data sheet | Item number:2004-1307

Compatible products

ferrule

Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-262

Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-263

Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-264

Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-266

Item no.: 216-267
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-267

Insulation stop

Item no.: 2004-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

2004-171

Item no.: 2004-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

2004-172

Jumper

Item no.: 2004-402

Push-in type jumper bar; insulated; 2-way; Nominal current 32 A

2004-402

Item no.: 2004-403

Push-in type jumper bar; insulated; 3-way; Nominal current 32 A

2004-403

Item no.: 2004-404

Push-in type jumper bar; insulated; 4-way; Nominal current 32 A

2004-404

Item no.: 2004-405

Push-in type jumper bar; insulated; 5-way; Nominal current 32 A

2004-405

2004-1307

02.05.2019Page /4 11
