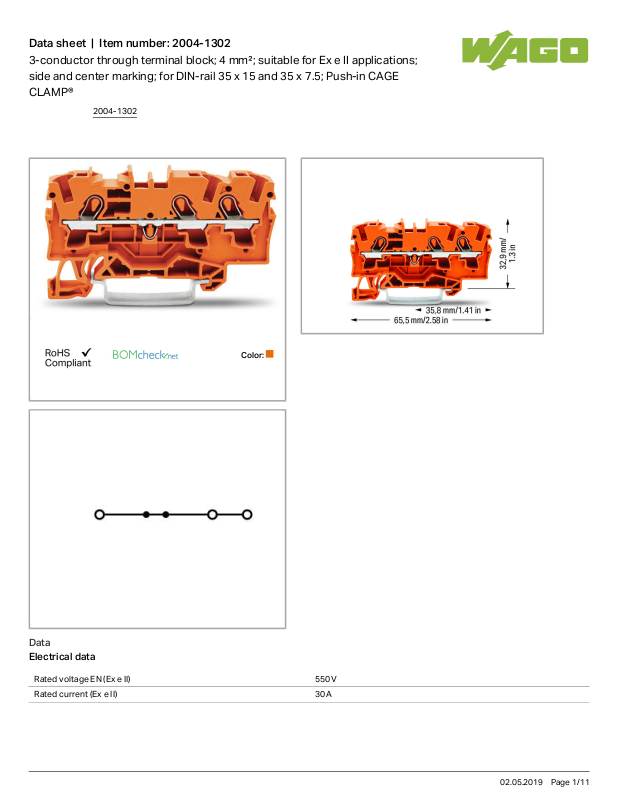

Data sheet | Item number:2004-1302
3-conductor through terminal block; 4 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 30 A
2004-1302
02.05.2019Page /1 11
Data sheet | Item number:2004-1302
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 32 A
Rated current (2) 41 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 30 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 30 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 30 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 30 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.5 … 6mm²/ 20 … 10AWG
Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG
Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG
Strip length 11 … 13mm/ 0.43 … 0.51inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 65.5mm/ 2.579inch
2004-1302
02.05.2019Page /2 11
Data sheet | Item number:2004-1302
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0.15 MJ
Weight 8.37g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332071536
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
EN 60079 E185892
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1095 U (II
2 G/D Ex
eII bzw.I
M2 Ex eI)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2160584.10
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7088
2004-1302
02.05.2019Page /3 11
Data sheet | Item number:2004-1302
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645435
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0
BV
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
End plate
Item no.: 2004-1391
End and intermediate plate; 1 mm thick
2004-1391
Item no.: 2004-1392
End and intermediate plate; 1 mm thick
2004-1392
Item no.: 2004-1393
Separator plate; 2 mm thick; oversized
2004-1393
2004-1302
02.05.2019Page /4 11
Data sheet | Item number:2004-1302
Item no.: 2004-1394
Separator plate; 2 mm thick; oversized
2004-1394
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
Jumper
Item no.: 2004-402
Push-in type jumper bar; insulated; 2-way; Nominal current 32 A
2004-402
Item no.: 2004-403
Push-in type jumper bar; insulated; 3-way; Nominal current 32 A
2004-403
Item no.: 2004-404
Push-in type jumper bar; insulated; 4-way; Nominal current 32 A
2004-404
Item no.: 2004-405
Push-in type jumper bar; insulated; 5-way; Nominal current 32 A
2004-405
Item no.: 2004-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2004-405
/011-000
Item no.: 2004-406
Push-in type jumper bar; insulated; 6-way; Nominal current 32 A
2004-406
Item no.: 2004-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2004-406
/020-000
Item no.: 2004-407
Push-in type jumper bar; insulated; 7-way; Nominal current 32 A
2004-407
Item no.: 2004-408
Push-in type jumper bar; insulated; 8-way; Nominal current 32 A
2004-408
Item no.: 2004-409
Push-in type jumper bar; insulated; 9-way; Nominal current 32 A
2004-409
Item no.: 2004-410
Push-in type jumper bar; insulated; 10-way; Nominal current 32 A
2004-410
Item no.: 2004-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 32 A
2004-433
Item no.: 2004-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 32 A
2004-434
Item no.: 2004-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 32 A
2004-435
Item no.: 2004-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 32 A
2004-436
Item no.: 2004-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 32 A
2004-437
Item no.: 2004-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 32 A
2004-438
2004-1302
02.05.2019Page /5 11
Data sheet | Item number:2004-1302
Item no.: 2004-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 32 A
2004-439
Item no.: 2004-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 32 A
2004-440
Item no.: 2006-499
Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A
2006-499
Item no.: 2016-499
Step-down jumper; insulated; from 16/10 mm² to 10/6/4/2.5 mm²; Nominal current 57 A
2016-499
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
2004-1302
02.05.2019Page /6 11
Data sheet | Item number:2004-1302
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-005
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-135
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-135
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
2004-1302
02.05.2019Page /7 11
Data sheet | Item number:2004-1302
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
2004-1302
02.05.2019Page /8 11
Data sheet | Item number:2004-1302
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
2004-1302
02.05.2019Page /9 11
Data sheet | Item number:2004-1302
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
check
Item no.: 2004-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2004-511
Item no.: 2004-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2004-549
Item no.: 2004-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2004-552
Item no.: 2004-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2004-553
Item no.: 2004-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2004-554
Item no.: 2004-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2004-555
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Protective Warning Marker
Item no.: 2004-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2004-115
tools
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Insulation stop
Item no.: 2004-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2004-171
Item no.: 2004-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2004-172
2004-1302
02.05.2019Page /10 11
Data sheet | Item number:2004-1302
ferrule
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-267
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-267
Downloads
Documentation
Bid Text
2004-1302
Reihenklemmen, TOPJOB S
Apr 4, 2012 docx
15.1 kB
Download
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2004-1302 URL Download
2004-1302
Subject to changes.
02.05.2019Page /11 11
Loading...
