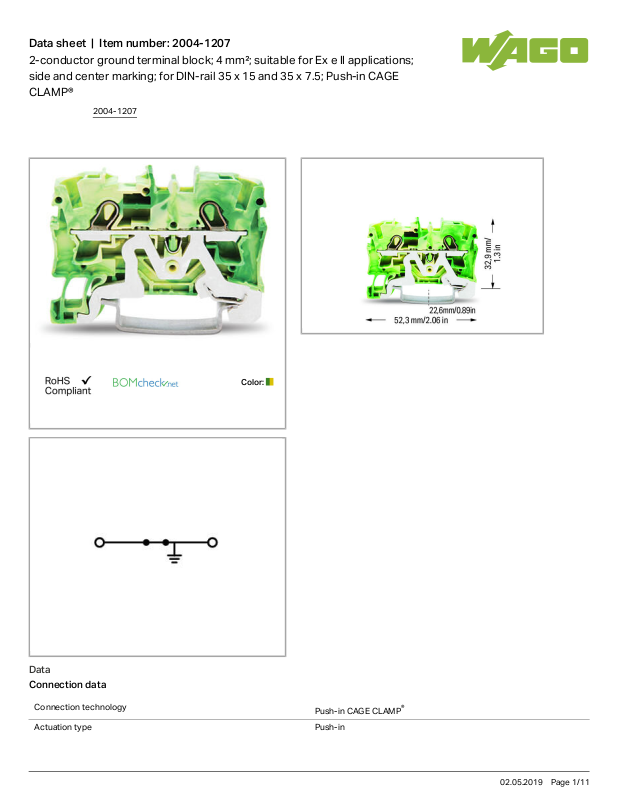

Data sheet | Item number:2004-1207
2-conductor ground terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
2004-1207
02.05.2019Page /1 11
Data sheet | Item number:2004-1207
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.5 … 6mm²/ 20 … 10AWG
Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG
Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG
Strip length 11 … 13mm/ 0.43 … 0.51inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 52.3mm/ 2.059inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.12 MJ
Weight 12.417g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332071345
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
2004-1207
02.05.2019Page /2 11
Data sheet | Item number:2004-1207
AEx
Underwriters Laboratories Inc.
EN 60079 E185892
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX 1095 U (II 2 G/D Ex eII bzw.I M2 Ex eI)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2160584.10
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7088
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645435
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
2004-1207
02.05.2019Page /3 11
Data sheet | Item number:2004-1207

Compatible products

Jumper
Item no.: 2004-402
Push-in type jumper bar; insulated; 2-way; Nominal current 32 A
2004-402
Item no.: 2004-403
Push-in type jumper bar; insulated; 3-way; Nominal current 32 A
2004-403
Item no.: 2004-404
Push-in type jumper bar; insulated; 4-way; Nominal current 32 A
2004-404
Item no.: 2004-405
Push-in type jumper bar; insulated; 5-way; Nominal current 32 A
2004-405
Item no.: 2004-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2004-405
/011-000
Item no.: 2004-406
Push-in type jumper bar; insulated; 6-way; Nominal current 32 A
2004-406
Item no.: 2004-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2004-406
/020-000
Item no.: 2004-407
Push-in type jumper bar; insulated; 7-way; Nominal current 32 A
2004-407
Item no.: 2004-408
Push-in type jumper bar; insulated; 8-way; Nominal current 32 A
2004-408
Item no.: 2004-409
Push-in type jumper bar; insulated; 9-way; Nominal current 32 A
2004-409
Item no.: 2004-410
Push-in type jumper bar; insulated; 10-way; Nominal current 32 A
2004-410
Item no.: 2004-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 32 A
2004-433
Item no.: 2004-434
