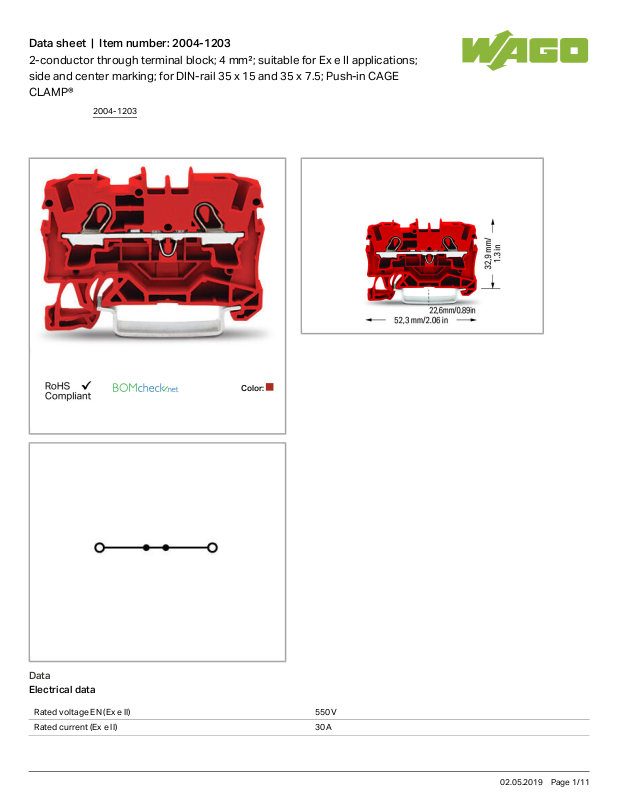

Wago 2004-1203 Data Sheet

Data sheet | Item number:2004-1203

2-conductor through terminal block; 4 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Rated current (Ex e II) 30 A

2004-1203

02.05.2019Page /1 11

Data sheet | Item number:2004-1203

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 32 A

Rated current (2) 41 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 30 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 30 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 30 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 30 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 4mm²

Solid conductor 0.5 … 6mm²/ 20 … 10AWG

Solid conductor, push-in termination 1.5 … 6mm²/ 14 … 10AWG

Fine-stranded conductor 0.5 … 6mm²/ 20 … 10AWG

Strip length 11 … 13mm/ 0.43 … 0.51inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 52.3mm/ 2.059inch

2004-1203

02.05.2019Page /2 11

Data sheet | Item number:2004-1203

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color red

Insulating material Polyamide 66 (PA 66)

Fire load 0.114 MJ

Weight 6.325g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454290641

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

EN 60079 E185892

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1095 U (II
2 G/D Ex
eII bzw.I
M2 Ex eI)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.10

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7088

2004-1203

02.05.2019Page /3 11

Data sheet | Item number:2004-1203

CSA

DEKRA Certification B.V.

C22.2 No. 158 1645435

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0

BV

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

Compatible products

Protective Warning Marker

Item no.: 2004-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2004-115

check

Item no.: 2004-511

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole

2004-511

Item no.: 2004-549

Spacer module; modular; e.g., for bridging commoned terminal blocks

2004-549
