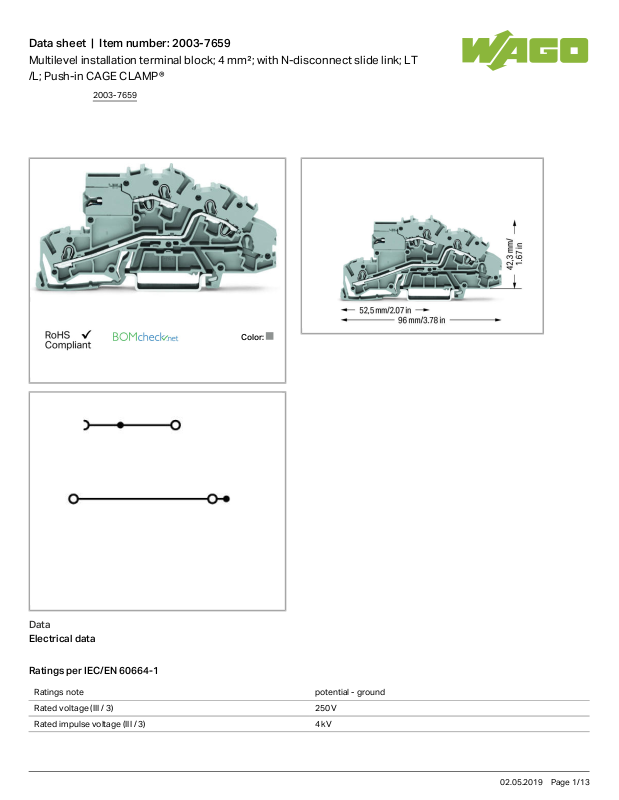

Data sheet | Item number:2003-7659

Multilevel installation terminal block; 4 mm²; with N-disconnect slide link; LT
/L; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Ratings note potential - ground

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

2003-7659

02.05.2019Page /1 13

Data sheet | Item number:2003-7659

Rated current 32 A

Ratings note 2 potential-potential

Rated voltage (III / 3) 2 400 V

Rated impulse voltage (III / 3) 2 6 kV

Rated current (2) 32 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 2

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 42.3mm/ 1.665inch

Depth 96mm/ 3.78inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Potential marking LT/L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.245 MJ

Weight 13.934g

2003-7659

02.05.2019Page /2 13

Data sheet | Item number:2003-7659

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454792749

Customs Tariff No. 85369010000
