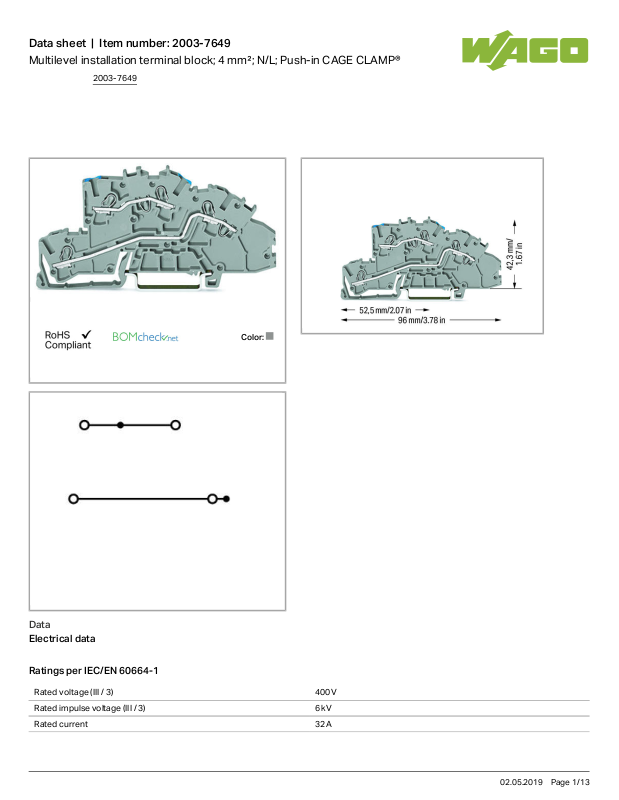

Wago 2003-7649 Data Sheet

Data sheet | Item number:2003-7649

Multilevel installation terminal block; 4 mm²; N/L; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 32 A

2003-7649

02.05.2019Page /1 13

Data sheet | Item number:2003-7649

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 42.3mm/ 1.665inch

Depth 96mm/ 3.78inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Potential marking N/L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.24 MJ

Weight 13.608g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4044918925624

Customs Tariff No. 85369010000

2003-7649

02.05.2019Page /2 13

Data sheet | Item number:2003-7649

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2196143:

01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7519

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)
