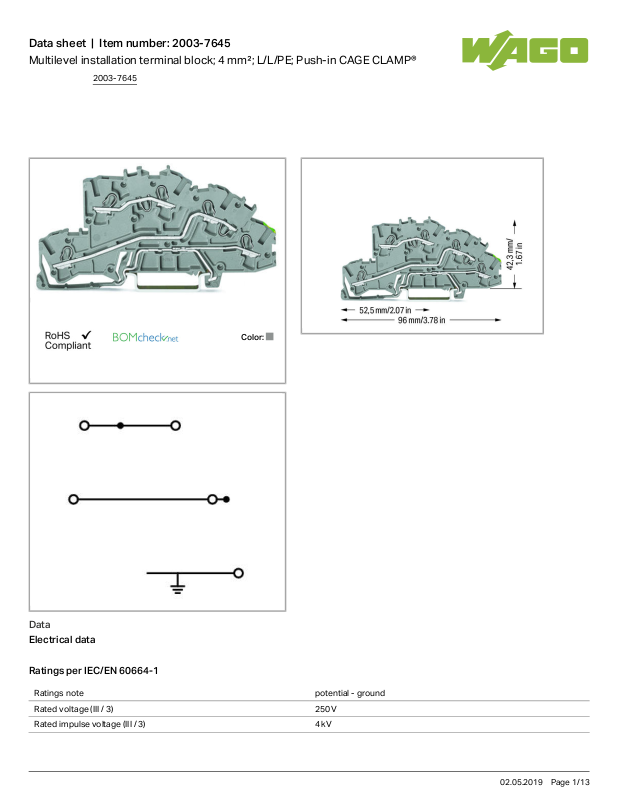

Wago 2003-7645 Data Sheet

Data sheet | Item number:2003-7645

Multilevel installation terminal block; 4 mm²; L/L/PE; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Ratings note potential - ground

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

2003-7645

02.05.2019Page /1 13

Data sheet | Item number:2003-7645

Rated current 32 A

Ratings note 2 potential-potential

Rated voltage (III / 3) 2 400 V

Rated impulse voltage (III / 3) 2 6 kV

Rated current (2) 32 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 5

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 42.3mm/ 1.665inch

Depth 96mm/ 3.78inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Potential marking L/L/PE

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.245 MJ

Weight 16.318g

2003-7645

02.05.2019Page /2 13

Data sheet | Item number:2003-7645

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4044918925600

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2196143:

01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7519

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Compatible products

2003-7645

02.05.2019Page /3 13

Data sheet | Item number:2003-7645

General accessories

Item no.: 2003-7300

Lock-out; prevents reclosing of slide link; Snap-in type; for 2003 Series

2003-7300

Item no.: 210-281

Connector

210-281

tools

Item no.: 2009-309

Operating tool; Blades: 3.5 mm and 2.5 mm; for TOPJOB®S installation terminal blocks

2009-309

Item no.: 2009-310

Operating tool; Blades: 3.5 mm and 5.5 mm; for TOPJOB®S installation terminal blocks

2009-310

Item no.: 210-658

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720

End plate

Item no.: 2003-7692

End and intermediate plate; 0.8 mm thick

2003-7692

Jumper

Item no.: 2002-400

Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A

2002-400

Item no.: 2002-402

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

Item no.: 2002-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-005

Item no.: 2002-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-006

Item no.: 2002-403

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

Item no.: 2002-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-005

Item no.: 2002-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-006

Item no.: 2002-404

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

Item no.: 2002-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-005
