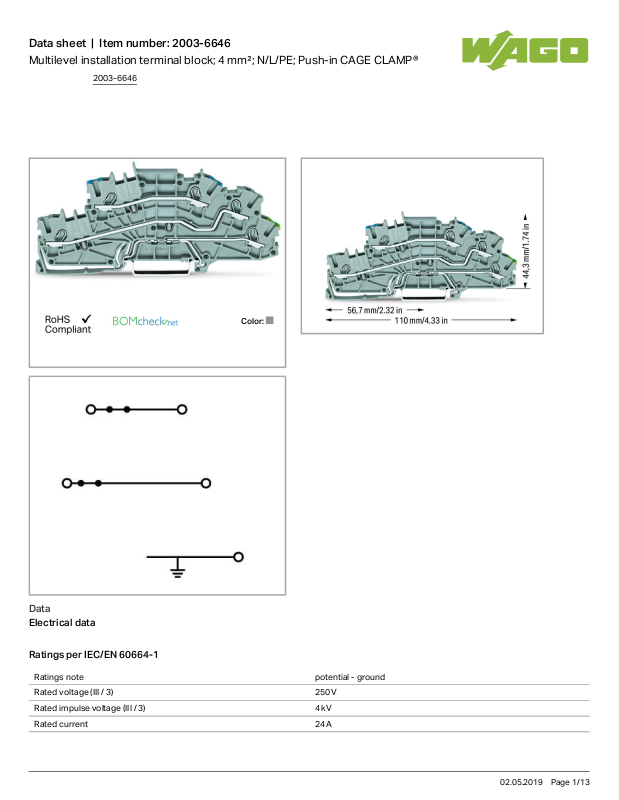

Wago 2003-6646 Data Sheet

Data sheet | Item number:2003-6646

Multilevel installation terminal block; 4 mm²; N/L/PE; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Ratings note potential - ground

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 24 A

2003-6646

02.05.2019Page /1 13

Data sheet | Item number:2003-6646

Ratings note 2 potential-potential

Rated voltage (III / 3) 2 400 V

Rated impulse voltage (III / 3) 2 6 kV

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Approvals per CSA

Rated voltage CSA (Use Group C) 300 V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 5

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 44.3mm/ 1.744inch

Depth 110mm/ 4.331inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Potential marking N/L/PE

2003-6646

02.05.2019Page /2 13

Data sheet | Item number:2003-6646

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.308 MJ

Weight 20.052g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4050821322061

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2196143:

01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7519

CSA

DEKRA Certification B.V.

C22.2 No. 158 70111102

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc.

UL 1059 20190402-

E45172

Compatible products

2003-6646

02.05.2019Page /3 13

Data sheet | Item number:2003-6646

End plate

Item no.: 2003-6692

End and intermediate plate; 0.8 mm thick

2003-6692

Protective Warning Marker

Item no.: 2002-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2002-115

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-243

Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-244

Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-246

Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-262

Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-263

Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-264

Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-266

tools

Item no.: 2009-309

Operating tool; Blades: 3.5 mm and 2.5 mm; for TOPJOB®S installation terminal blocks

2009-309

Item no.: 2009-310

Operating tool; Blades: 3.5 mm and 5.5 mm; for TOPJOB®S installation terminal blocks

2009-310

Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658
