Wago 2003-6642 Data Sheet

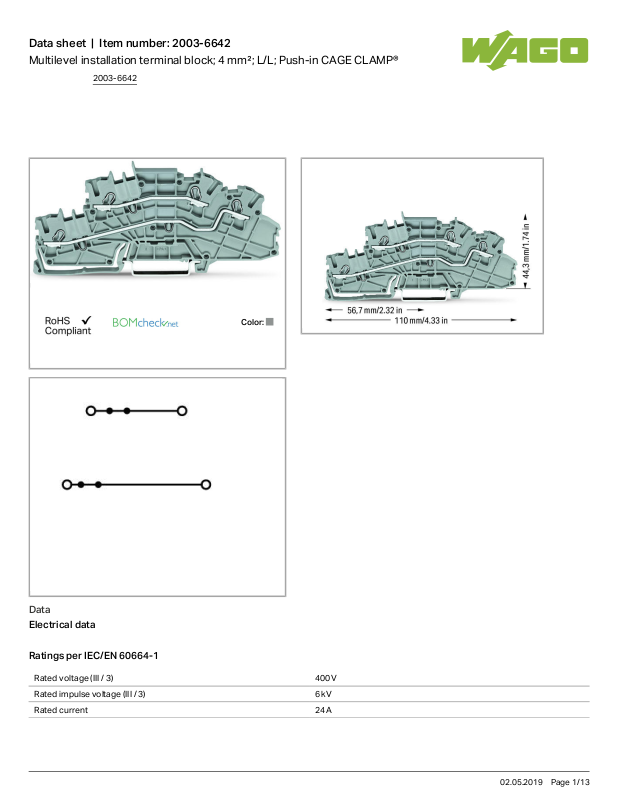

Data sheet | Item number:2003-6642

Multilevel installation terminal block; 4 mm²; L/L; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

2003-6642

02.05.2019Page /1 13

Data sheet | Item number:2003-6642

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Approvals per CSA

Rated voltage CSA (Use Group C) 300 V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 44.3mm/ 1.744inch

Depth 110mm/ 4.331inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Potential marking L/L

Marking level Center/side marking

2003-6642

02.05.2019Page /2 13

Data sheet | Item number:2003-6642

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.307 MJ

Weight 17.232g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4050821322047

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CCA

DEKRA Certification B.V.

EN 60947 2196143:

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7519

CSA

DEKRA Certification B.V.

C22.2 No. 158 70111102

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

Underwriters Laboratories Inc.

UL 1059 20190402-

E45172

Compatible products

2003-6642

02.05.2019Page /3 13

Data sheet | Item number:2003-6642

assembling

Item no.: 2009-304

Busbar carrier; not suitable for use as end stop; for DIN 35 rail; 1.5 mm thick

2009-304

Item no.: 2009-305

Busbar carrier; with end stop function and detachable separator plate; for DIN 35 rail; 7.5 mm thick

2009-305

Jumper

Item no.: 2002-400

Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A

2002-400

Item no.: 2002-402

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

Item no.: 2002-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-005

Item no.: 2002-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-006

Item no.: 2002-403

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

Item no.: 2002-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-005

Item no.: 2002-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-006

Item no.: 2002-404

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

Item no.: 2002-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-005

Item no.: 2002-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-006

Item no.: 2002-405

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

Item no.: 2002-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-005

2003-6642

02.05.2019Page /4 13
