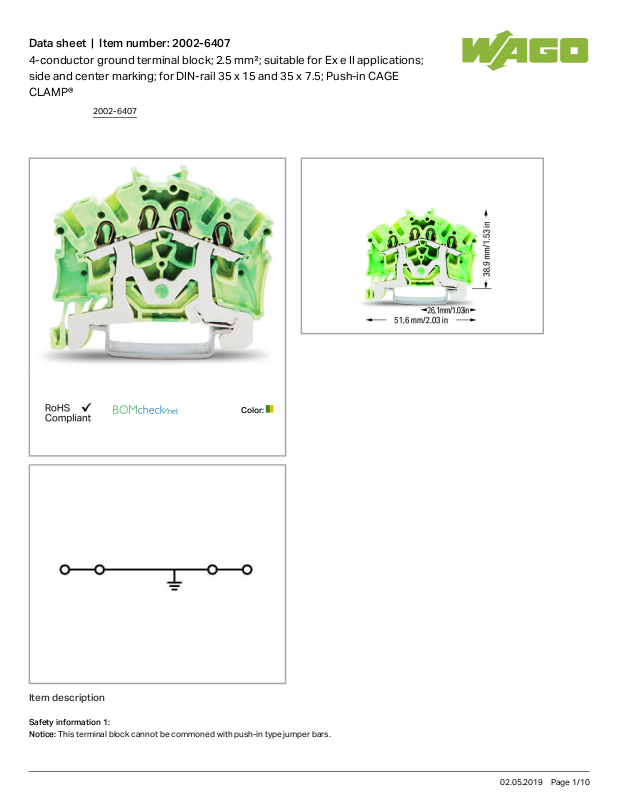

Wago 2002-6407 Data Sheet

Data sheet | Item number:2002-6407
4-conductor ground terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Item description

Safety information 1:
This terminal block cannot be commoned with push-in type jumper bars.Notice:
2002-6407
02.05.2019Page /1 10
Data sheet | Item number:2002-6407
This terminal block cannot be commoned with push-in type jumper bars.Notice:
Safety information 2:
An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa.

Data

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 38.9mm/ 1.531inch
Depth 51.3mm/ 2.031inch

Mechanical data

Design angled
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.112 MJ
Weight 8.865g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
2002-6407
02.05.2019Page /2 10
Data sheet | Item number:2002-6407
GTIN 4044918964913
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 03
ATEX 1162 U (II 2 G/D Ex e II bzw. I M 2 Ex e I)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
03.0004U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
2002-6407
02.05.2019Page /3 10
