Wago 2002-6405 Data Sheet

Data sheet | Item number:2002-6405

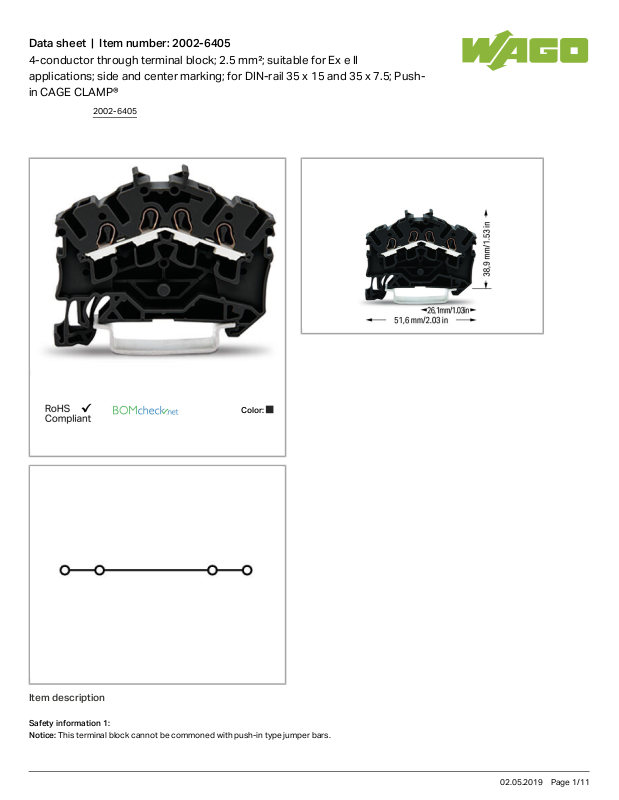

4-conductor through terminal block; 2.5 mm²; suitable for Ex e II
applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push­in CAGE CLAMP®

Color:

Item description

Safety information 1:

This terminal block cannot be commoned with push-in type jumper bars.Notice:

2002-6405

02.05.2019Page /1 11

Data sheet | Item number:2002-6405

This terminal block cannot be commoned with push-in type jumper bars.Notice:

Safety information 2:

An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa.

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Rated current (Ex e II) 22 A

Rated current (Ex e II) with jumper 20 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Rated current (2) 32 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

2002-6405

02.05.2019Page /2 11

Data sheet | Item number:2002-6405

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 38.9mm/ 1.531inch

Depth 51.3mm/ 2.031inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color black

Insulating material Polyamide 66 (PA 66)

Fire load 0.116 MJ

Weight 5.606g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4045454600303

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 03

ATEX
1162 U (II
2 G/D Ex e
II bzw. I M
2 Ex e I)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

03.0004U

2002-6405

02.05.2019Page /3 11
