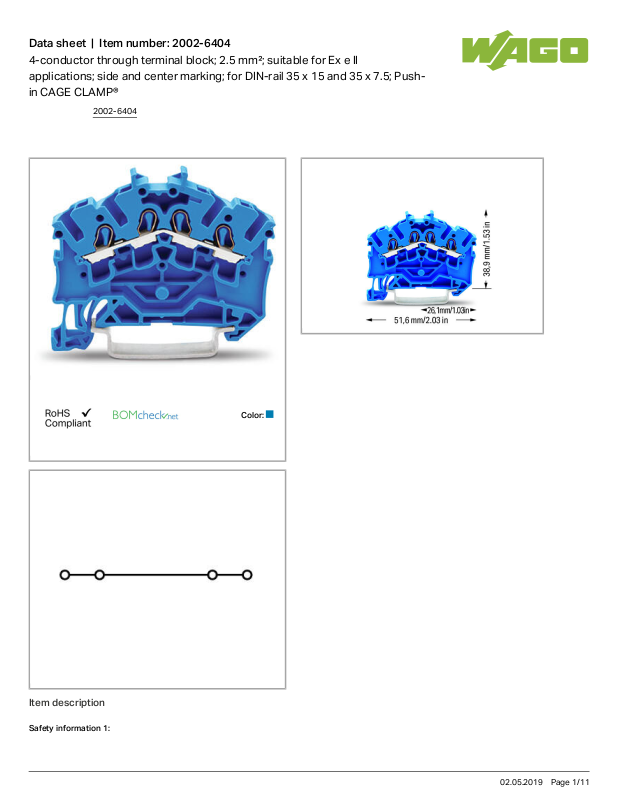

Data sheet | Item number:2002-6404
4-conductor through terminal block; 2.5 mm²; suitable for Ex e II
applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Pushin CAGE CLAMP®
Color:
Item description
Safety information 1:
2002-6404
02.05.2019Page /1 11
Page 2
Data sheet | Item number:2002-6404
This terminal block cannot be commoned with push-in type jumper bars.Notice:
Safety information 2:
An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa.
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 22 A
Rated current (Ex e II) with jumper 20 A
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Rated current (2) 32 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 20 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 20 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 20 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
2002-6404
02.05.2019Page /2 11
Page 3
Data sheet | Item number:2002-6404
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 38.9mm/ 1.531inch
Depth 51.3mm/ 2.031inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.141 MJ
Weight 5.86g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4044918964906
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 03
ATEX
1162 U (II
2 G/D Ex e
II bzw. I M
2 Ex e I)
IECEx
IEC 60079 IECEx PTB
2002-6404
02.05.2019Page /3 11
Page 4
Data sheet | Item number:2002-6404
Physikalisch Technische Bundesanstalt 03.0004U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
2002-6404
02.05.2019Page /4 11
Page 5
Data sheet | Item number:2002-6404
Compatible products
End plate
Item no.: 2002-6391
End and intermediate plate; 0.8 mm thick
2002-6391
Item no.: 2002-6392
End and intermediate plate; 0.8 mm thick
2002-6392
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
2002-6404
02.05.2019Page /5 11
Page 6
Data sheet | Item number:2002-6404
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
tools
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-246
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-266
Protective Warning Marker
Item no.: 2002-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2002-115
Jumper
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-005
2002-6404
02.05.2019Page /6 11
Page 7
Data sheet | Item number:2002-6404
Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-006
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2002-172
Marking accessories
Item no.: 2002-161
Adaptor
2002-161
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-005
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
2002-6404
02.05.2019Page /7 11
Page 8
Data sheet | Item number:2002-6404
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
2002-6404
02.05.2019Page /8 11
Page 9
Data sheet | Item number:2002-6404
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
2002-6404
02.05.2019Page /9 11
Page 10
Data sheet | Item number:2002-6404
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
check
Item no.: 2002-611
TOPJOB®S L-type test plug module; modular; 1-pole
2002-611
Item no.: 2002-649
TOPJOB®S L-type spacer module; modular; e.g., for bridging commoned terminal blocks
2002-649
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Downloads
Documentation
Bid Text
2002-6404
02.05.2019Page /10 11
Page 11
Data sheet | Item number:2002-6404
2002-6404
docx
15.4 kB
Download
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2002-6404 URL Download
2002-6404
Subject to changes.
02.05.2019Page /11 11
Loading...
