Wago 2002-6308 Data Sheet

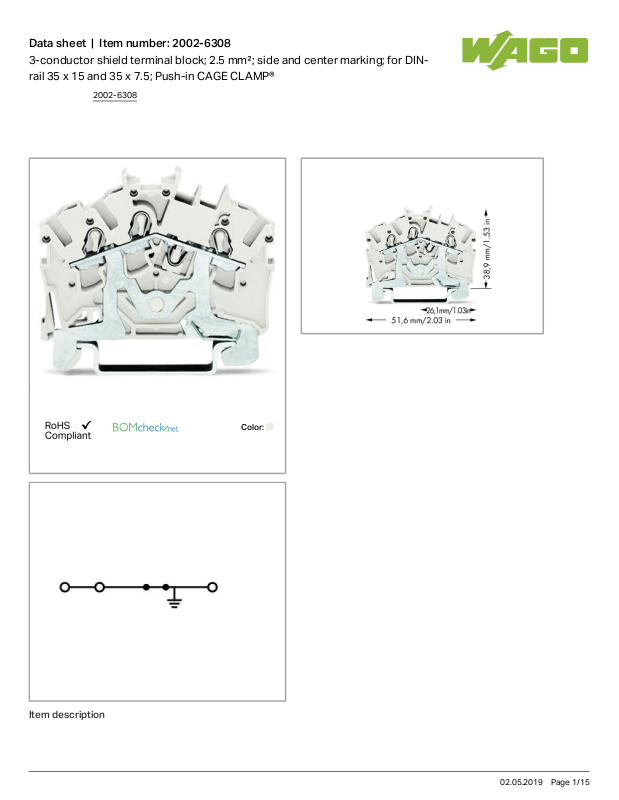

Data sheet | Item number:2002-6308

3-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN­rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Color:

Item description

2002-6308

02.05.2019Page /1 15

Data sheet | Item number:2002-6308

Safety information 1:

An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa.

Data

Electrical data

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 38.9mm/ 1.531inch

Depth 51.3mm/ 2.031inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center/side marking

2002-6308

02.05.2019Page /2 15

Data sheet | Item number:2002-6308

Material Data

Color white

Insulating material Polyamide 66 (PA 66)

Fire load 0.107 MJ

Weight 8.578g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4045454752569

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

03.0004U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

2002-6308

02.05.2019Page /3 15

Data sheet | Item number:2002-6308

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

Compatible products

check

Item no.: 2002-511

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole

2002-511

Item no.: 2002-549

Spacer module; modular; e.g., for bridging commoned terminal blocks

2002-549

Item no.: 2002-552

Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole

2002-552

Item no.: 2002-553

Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole

2002-553

Item no.: 2002-554

Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole

2002-554

Item no.: 2002-555

Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole

2002-555

2002-6308

02.05.2019Page /4 15

Data sheet | Item number:2002-6308

Item no.: 2002-556

Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole

2002-556

Item no.: 2002-557

Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole

2002-557

Item no.: 2002-558

Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole

2002-558

Item no.: 2002-559

Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole

2002-559

Item no.: 2002-560

Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole

2002-560

Item no.: 2002-611

TOPJOB®S L-type test plug module; modular; 1-pole

2002-611

Item no.: 2002-649

TOPJOB®S L-type spacer module; modular; e.g., for bridging commoned terminal blocks

2002-649

Item no.: 2009-174

Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks

2009-174

Item no.: 2009-182

Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm

2009-182

Insulation stop

Item no.: 2002-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

2002-171

Item no.: 2002-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

2002-172

Marking accessories

Item no.: 2002-161

Adaptor

2002-161

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-005

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-005

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007

2002-6308
