Wago 2002-3258 Data Sheet

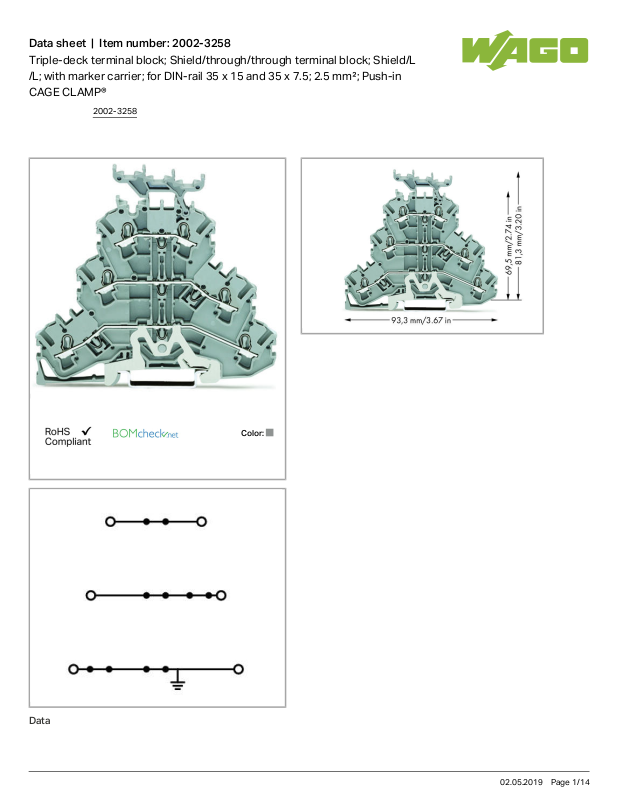

Data sheet | Item number:2002-3258

Triple-deck terminal block; Shield/through/through terminal block; Shield/L /L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

2002-3258

02.05.2019Page /1 14

Data sheet | Item number:2002-3258

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Rated current (2) 28 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Rated voltage UL (Use Group D) 600 V

Rated current UL (Use Group D) 5 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

Number of connection points (connection type) 3

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Number of connection points 3

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 6

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

2002-3258

02.05.2019Page /2 14

Data sheet | Item number:2002-3258

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 81.3mm/ 3.201inch

Depth 93.3mm/ 3.673inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking Schirm/L/L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.326 MJ

Weight 20.356g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4044918989664

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677PDA

2002-3258

02.05.2019Page /3 14

Data sheet | Item number:2002-3258

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

DEKRA Certification B.V.

EN 60947 NTR NL

7730

Compatible products

Insulation stop

Item no.: 2002-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

2002-171

Item no.: 2002-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

2002-172

Marking accessories

Item no.: 2002-161

Adaptor

2002-161

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-115

2002-3258

02.05.2019Page /4 14

Data sheet | Item number:2002-3258

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type 2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-005

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-005

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-012

Item no.: 2009-115/000-017

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-017

Item no.: 2009-115/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-023

Item no.: 2009-115/000-024

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-024

Item no.: 2009-145
