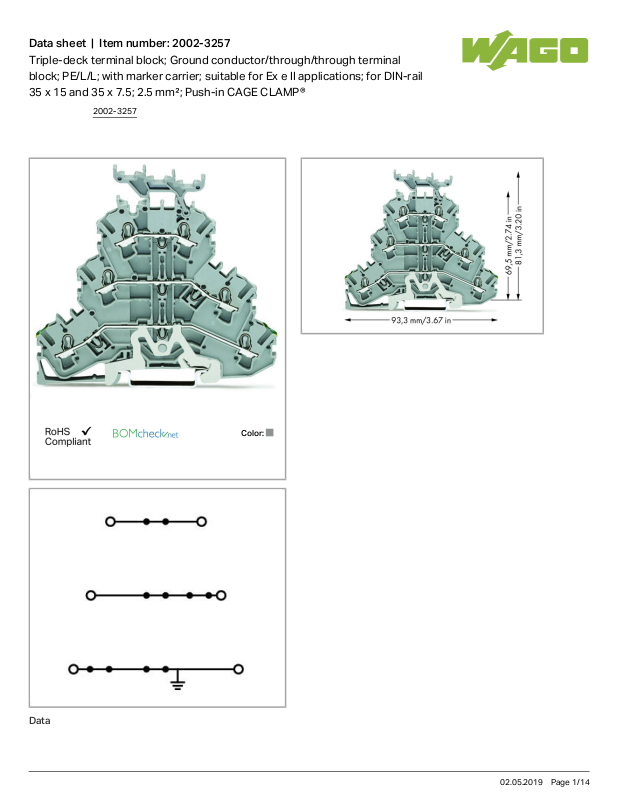

Wago 2002-3257 Data Sheet

Data sheet | Item number:2002-3257

Triple-deck terminal block; Ground conductor/through/through terminal block; PE/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

2002-3257

02.05.2019Page /1 14

Data sheet | Item number:2002-3257

Electrical data

Rated voltage EN (Ex e II) 440 V

Rated current (Ex e II) 19 A

Rated current (Ex e II) with jumper 17 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Rated current (2) 28 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Rated voltage UL (Use Group D) 600 V

Rated current UL (Use Group D) 5 A

Connection data

Connection technology

Push-in CAGE CLAMP

Number of connection points (connection type) 3

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Number of connection points 3

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 6

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

2002-3257

02.05.2019Page /2 14

Data sheet | Item number:2002-3257

Height from upper-edge of DIN-35 rail 81.3mm/ 3.201inch

Depth 93.3mm/ 3.673inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking PE/L/L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.326 MJ

Weight 20.356g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4044918989633

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 03

ATEX 1162 U (II 2 G/D Ex e II bzw. I M 2 Ex e I)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

03.0004U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

2002-3257

02.05.2019Page /3 14

Data sheet | Item number:2002-3257

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677PDA

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

DEKRA Certification B.V.

EN 60947 NTR NL

7730

Compatible products

2002-3257

02.05.2019Page /4 14

Data sheet | Item number:2002-3257

End plate

Item no.: 2002-3291

End and intermediate plate; 0.8 mm thick

2002-3291

Item no.: 2002-3292

End and intermediate plate; 0.8 mm thick

2002-3292

ferrule

Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-241

Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-242

Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-243

Item no.: 216-244 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-244

Item no.: 216-246 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-246

Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-262

Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-263

Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-264

Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-266

Insulation stop

Item no.: 2002-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

2002-171

Item no.: 2002-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

2002-172

Marking accessories

Item no.: 2002-161

Adaptor

2002-161

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

2002-3257

02.05.2019Page /5 14

+ 9 hidden pages
