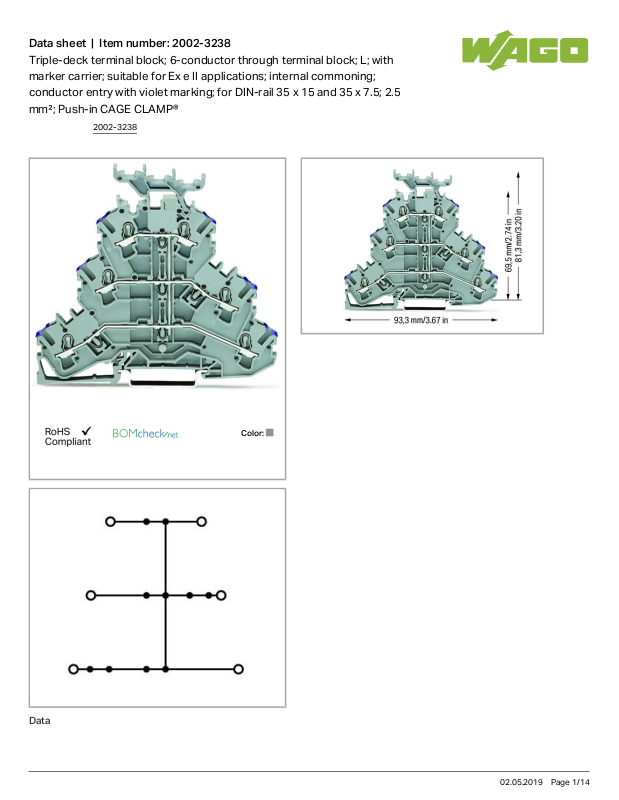

Data sheet | Item number:2002-3238
Triple-deck terminal block; 6-conductor through terminal block; L; with
marker carrier; suitable for Ex e II applications; internal commoning;
conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5
mm²; Push-in CAGE CLAMP®
Color:
Data
2002-3238
02.05.2019Page /1 14
Data sheet | Item number:2002-3238
Electrical data
Rated voltage EN (Ex e II) 440 V
Rated current (Ex e II) 19 A
Rated current (Ex e II) with jumper 17 A
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 24 A
Rated current (2) 28 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 20 A
Rated voltage UL (Use Group D) 600 V
Rated current UL (Use Group D) 5 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 20 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 20 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 6
Total number of potentials 1
Number of levels 3
2002-3238
02.05.2019Page /2 14
Data sheet | Item number:2002-3238
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 81.3mm/ 3.201inch
Depth 93.3mm/ 3.673inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking L
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.341 MJ
Weight 18.428g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4044918989671
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 03
ATEX
1162 U (II
2 G/D Ex e
II bzw. I M
2 Ex e I)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
2002-3238
02.05.2019Page /3 14
Data sheet | Item number:2002-3238
Logo Approval Additional Approval Text name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
Compatible products
