Wago 2002-2972 Data Sheet

Data sheet | Item number:2002-2972

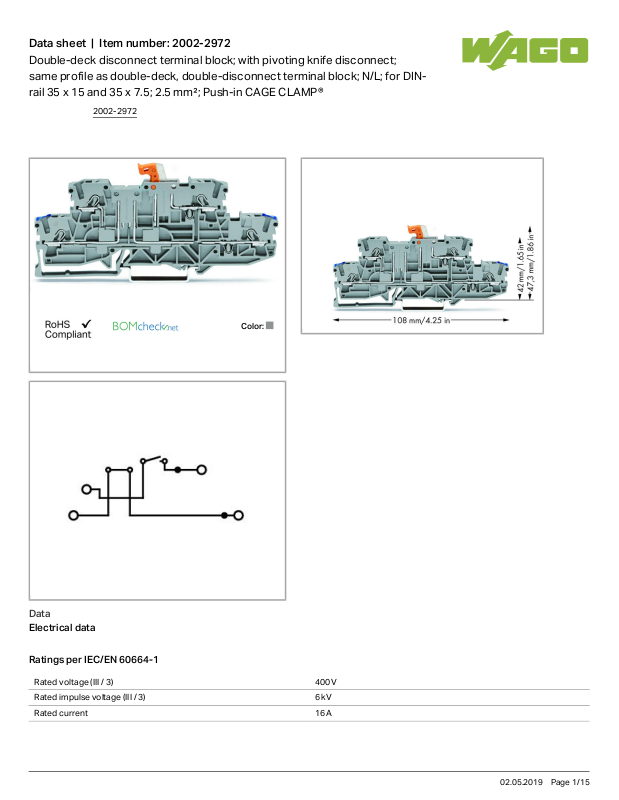

Double-deck disconnect terminal block; with pivoting knife disconnect;
same profile as double-deck, double-disconnect terminal block; N/L; for DIN­rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

2002-2972

02.05.2019Page /1 15

Data sheet | Item number:2002-2972

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V

Rated current CSA (Use Group B) 15 A

Rated voltage CSA (Use Group C) 150V

Rated current CSA (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 4

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 42mm/ 1.654inch

Depth 108mm/ 4.252inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N/L

Marking level Side marking

2002-2972

02.05.2019Page /2 15

Data sheet | Item number:2002-2972

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.315 MJ

Weight 17.351g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454382896

Customs Tariff No. 85365080990
