Wago 2002-2963 Data Sheet

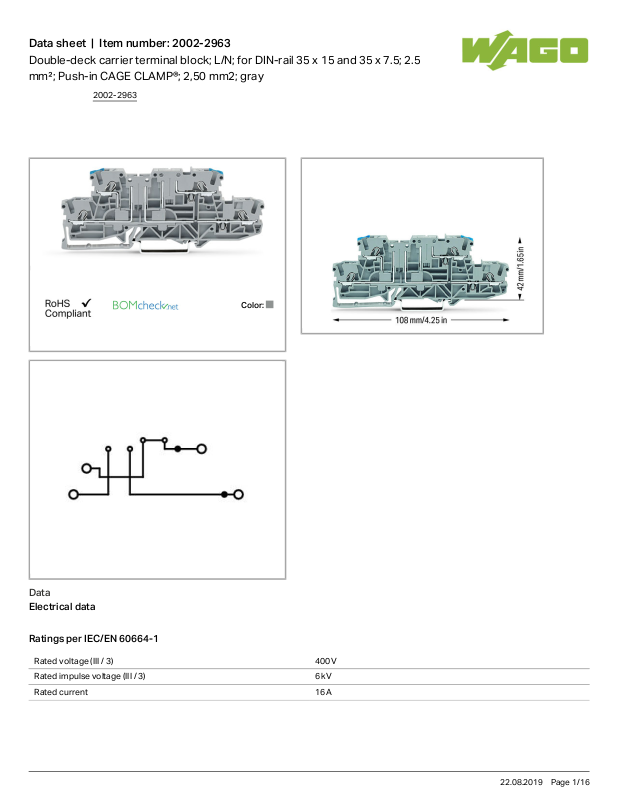

Data sheet | Item number:2002-2963

Double-deck carrier terminal block; L/N; for DIN-rail 35 x 15 and 35 x 7.5; 2.5
mm²; Push-in CAGE CLAMP®; 2,50 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

2002-2963

22.08.2019Page /1 16

Data sheet | Item number:2002-2963

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V

Rated current CSA (Use Group B) 15 A

Rated voltage CSA (Use Group C) 150V

Rated current CSA (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 5

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 40.6mm/ 1.598inch

Depth 108mm/ 4.252inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking L/N

Marking level Side marking

2002-2963

22.08.2019Page /2 16

Data sheet | Item number:2002-2963

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.3 MJ

Weight 16.68g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4050821242413

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2198985.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

2002-2963

22.08.2019Page /3 16

Data sheet | Item number:2002-2963

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

CSA

DEKRA Certification B.V.

C22.2 1536069

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7704

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

2002-2963

22.08.2019Page /4 16

Data sheet | Item number:2002-2963

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

General accessories

Item no.: 2002-800

Empty component plug housing; 5.2 mm wide; 2-pole; Type 1; gray

2002-800

Item no.: 2002-800/1000-410
Component plug; for carrier terminal blocks; 2-pole; with diode 1N4007; anode, left side; 5.2 mm
wide; Operating temperature 85°C max.; gray

2002-800

/1000-410

Item no.: 2002-800/1000-411
Component plug; for carrier terminal blocks; 2-pole; with diode 1N4007; 5.2 mm wide; Operating
temperature 85°C max.; gray

2002-800

/1000-411

Item no.: 2002-800/1000-541
Component plug; for carrier terminal blocks; 1-pole; LED (red); 5.2 mm wide; Operating temperature
85°C max.; gray

2002-800

/1000-541

Item no.: 2002-800/1000-542
Component plug; for carrier terminal blocks; 1-pole; LED (red); 5.2 mm wide; Operating temperature
85°C max.; gray

2002-800

/1000-542

Item no.: 2002-800/1000-836
Component plug; for carrier terminal blocks; 1-pole; LED (red); 5.2 mm wide; Operating temperature
85°C max.; gray

2002-800

/1000-836

Item no.: 2002-810

Empty component plug housing; 10.4 mm wide; 2-pole; Type 2; gray

2002-810

Item no.: 2002-820

Empty component plug housing; 10.4 mm wide; 4-pole; Type 3; gray

2002-820

Item no.: 2003-911
Double fuse plug; for 5 x 20 mm miniature metric fuse; without blown fuse indication; 10.4 mm wide;
gray

2003-911

Item no.: 2003-911/1000-923

Double fuse plug; for 5 x 20 mm miniature metric fuse; with indicator lamp; 230 V; 10.4 mm wide; gray

2003-911

/1000-923

Item no.: 2004-911

2002-2963

22.08.2019Page /5 16
