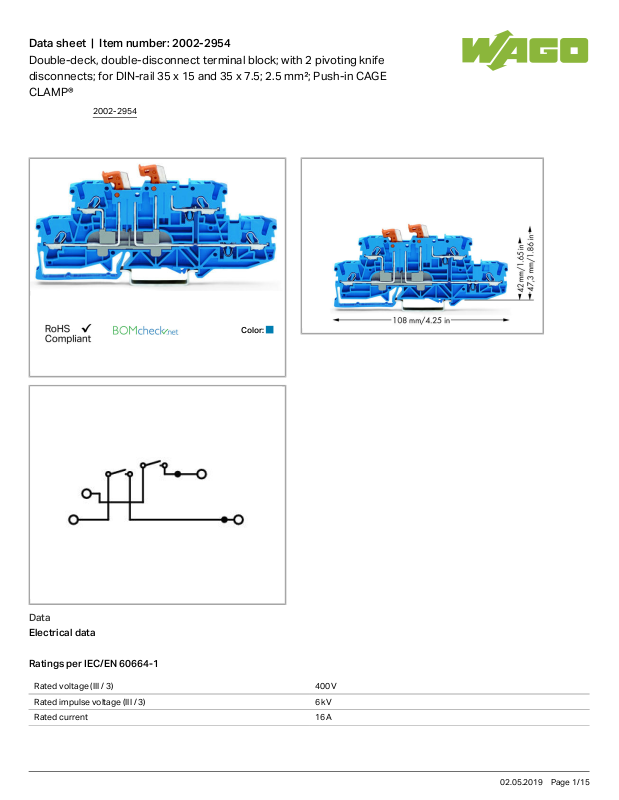

Wago 2002-2954 Data Sheet

Data sheet | Item number:2002-2954
Double-deck, double-disconnect terminal block; with 2 pivoting knife disconnects; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A
2002-2954
02.05.2019Page /1 15
Data sheet | Item number:2002-2954
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 4
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 42mm/ 1.654inch
Depth 108mm/ 4.252inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking N/N
Marking level Side marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.312 MJ
Weight 17.046g
2002-2954
02.05.2019Page /2 15
Data sheet | Item number:2002-2954
Commercial data
Product Group 22 (TOPJOB S)
GTIN 4045454381837

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
KIWA Netherlands B.V.
EN 60079 KIWA
17ATEX0030 U
IECEx
KIWA Netherlands B.V.
EN 60079 IECEx KIWA
17.0014U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
EN 60947 NTR NL
2002-2954
02.05.2019Page /3 15
Data sheet | Item number:2002-2954
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

General accessories
Item no.: 2002-880/1000-411
Component plug; 2-pole; with diode 1N4007; 10.4 mm wide; Operating temperature 85°C max.
2002-880
/1000-411
Item no.: 2002-880/1000-541
Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.
2002-880
/1000-541
Item no.: 2002-880/1000-542
LED module; with red LED; 10.4 mm wide; 30 - 65 V; Operating temperature 85°C max.
2002-880
/1000-542
Item no.: 2002-880/1000-836
Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.
2002-880
/1000-836
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2002-172
plug
Item no.: 2002-880
Empty component plug housing; 10.4 mm wide; 2-pole; Type 4
2002-880
2002-2954
02.05.2019Page /4 15
Data sheet | Item number:2002-2954
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-006
Item no.: 2002-403
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
Item no.: 2002-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-005
Item no.: 2002-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-006
Item no.: 2002-404
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
Item no.: 2002-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-005
Item no.: 2002-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-006
Item no.: 2002-405
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
Item no.: 2002-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-005
Item no.: 2002-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-006
Item no.: 2002-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2002-405
/011-000
Item no.: 2002-406
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
Item no.: 2002-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-005
2002-2954
02.05.2019Page /5 15
