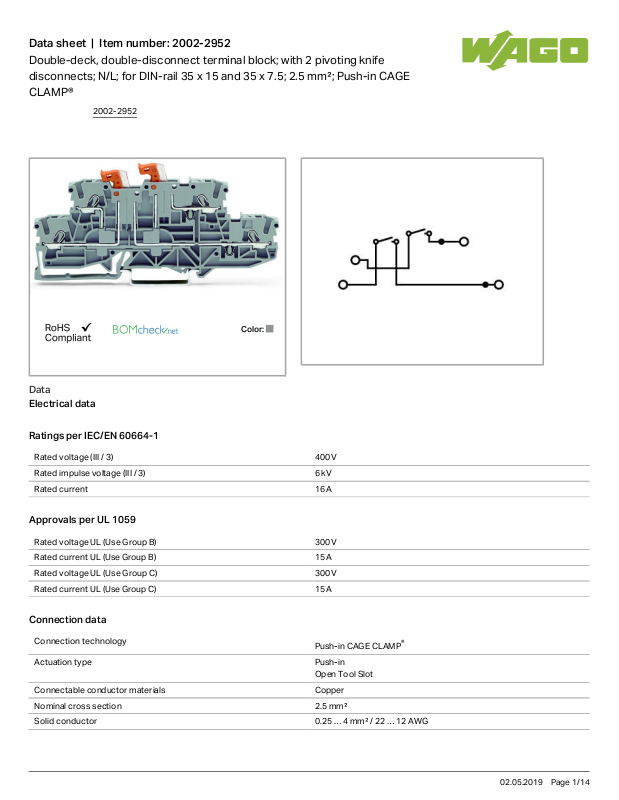

Wago 2002-2952 Data Sheet

Data sheet | Item number:2002-2952
Double-deck, double-disconnect terminal block; with 2 pivoting knife disconnects; N/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
2002-2952
02.05.2019Page /1 14
Data sheet | Item number:2002-2952
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 4
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 42mm/ 1.654inch
Depth 108mm/ 4.252inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking N/L
Marking level Side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.312 MJ
Weight 17.256g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4050821006756
Customs Tariff No. 85365080990

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
KIWA Netherlands B.V.
EN 60079 KIWA
17ATEX0030
2002-2952
02.05.2019Page /2 14
Data sheet | Item number:2002-2952
U
IECEx
KIWA Netherlands B.V.
EN 60079 IECEx KIWA
17.0014U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1059 E45172
2002-2952
02.05.2019Page /3 14
Data sheet | Item number:2002-2952
Compatible products
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2002-172
check
Item no.: 2002-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2002-511
Item no.: 2002-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2002-549
Item no.: 2002-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2002-552
Item no.: 2002-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2002-553
Item no.: 2002-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2002-554
Item no.: 2002-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2002-555
Item no.: 2002-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2002-556
Item no.: 2002-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2002-557
Item no.: 2002-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2002-558
Item no.: 2002-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2002-559
Item no.: 2002-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2002-560
Item no.: 2002-611
TOPJOB®S L-type test plug module; modular; 1-pole
2002-611
2002-2952
02.05.2019Page /4 14
Data sheet | Item number:2002-2952
Item no.: 2002-649
TOPJOB®S L-type spacer module; modular; e.g., for bridging commoned terminal blocks
2002-649
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
End plate
Item no.: 2002-2991
End and intermediate plate; 1 mm thick
2002-2991
Item no.: 2002-2992
End and intermediate plate; 1 mm thick
2002-2992
General accessories
Item no.: 2002-880/1000-411
Component plug; 2-pole; with diode 1N4007; 10.4 mm wide; Operating temperature 85°C max.
2002-880
/1000-411
Item no.: 2002-880/1000-541
Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.
2002-880
/1000-541
Item no.: 2002-880/1000-542
LED module; with red LED; 10.4 mm wide; 30 - 65 V; Operating temperature 85°C max.
2002-880
/1000-542
Item no.: 2002-880/1000-836
Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.
2002-880
/1000-836
Marking accessories
Item no.: 2002-161
Adaptor
2002-161
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-005
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
2002-2952
02.05.2019Page /5 14
