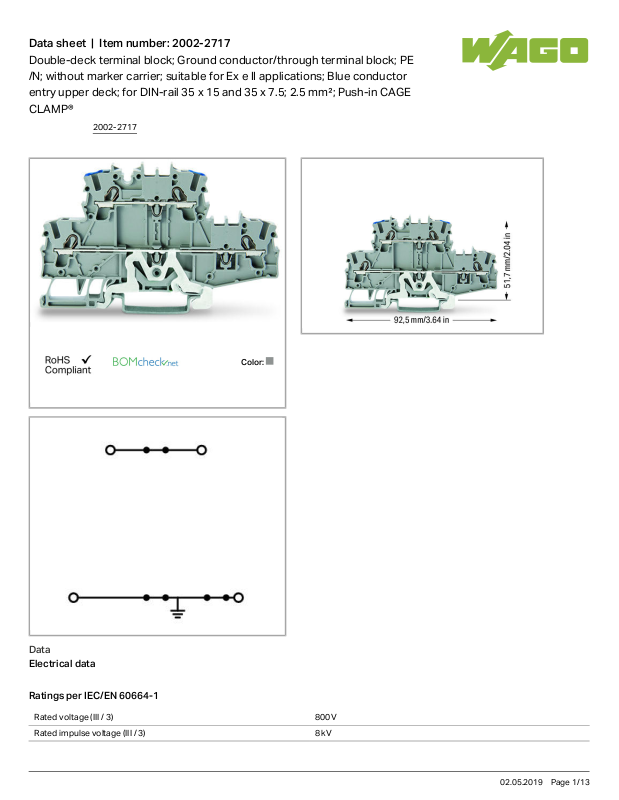

Wago 2002-2717 Data Sheet

Data sheet | Item number:2002-2717

Double-deck terminal block; Ground conductor/through terminal block; PE
/N; without marker carrier; suitable for Ex e II applications; Blue conductor
entry upper deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE
CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

2002-2717

02.05.2019Page /1 13

Data sheet | Item number:2002-2717

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Rated current (2) 28 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Number of connection points (connection type) 2

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Number of connection points 2

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch

Depth 92.5mm/ 3.642inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking PE/N

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.243 MJ

Weight 15.534g

2002-2717

02.05.2019Page /2 13

Data sheet | Item number:2002-2717

Commercial data

Country of origin DE

GTIN 4055143622578

Customs Tariff No. 85369010000
