Wago 2002-2702 Data Sheet

Data sheet | Item number:2002-2702

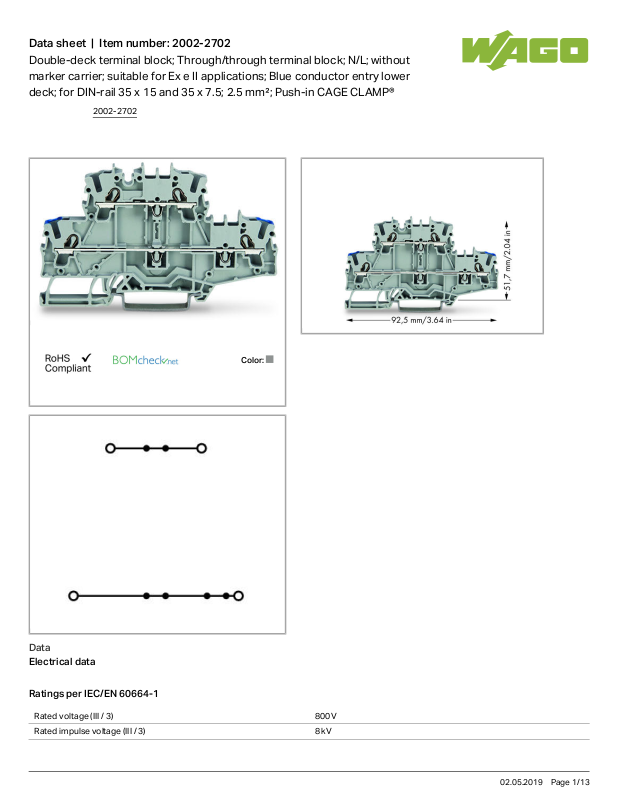

Double-deck terminal block; Through/through terminal block; N/L; without marker carrier; suitable for Ex e II applications; Blue conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
2002-2702
02.05.2019Page /1 13
Data sheet | Item number:2002-2702
Rated current 24 A
Rated current (2) 28 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Number of connection points (connection type) 2
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Number of connection points 2
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch
Depth 92.5mm/ 3.642inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking N/L
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 12.532g
2002-2702
02.05.2019Page /2 13
Data sheet | Item number:2002-2702

Commercial data

Country of origin DE
GTIN 4055143622509
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E 45172
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
