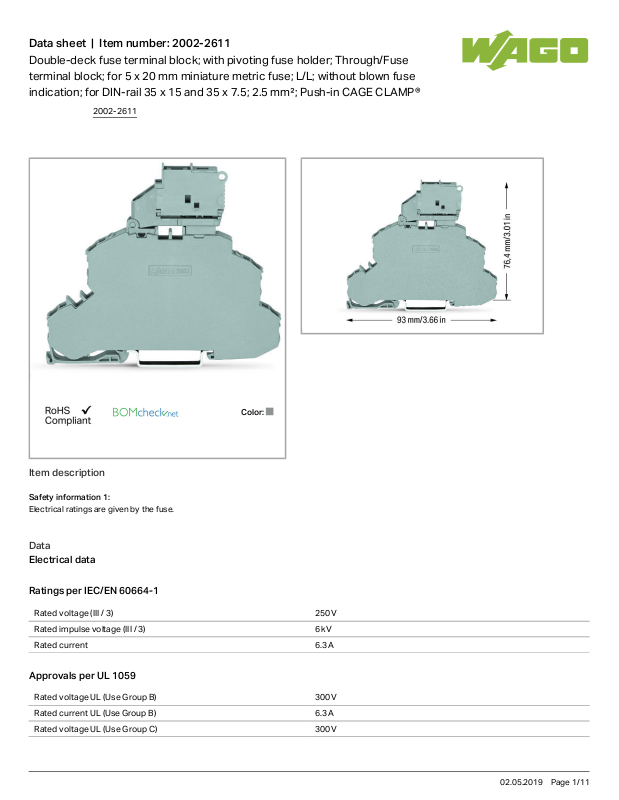

Wago 2002-2611 Data Sheet

Data sheet | Item number:2002-2611

Double-deck fuse terminal block; with pivoting fuse holder; Through/Fuse
terminal block; for 5 x 20 mm miniature metric fuse; L/L; without blown fuse
indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 6 kV

Rated current 6.3 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 6.3 A

Rated voltage UL (Use Group C) 300V

2002-2611

02.05.2019Page /1 11

Data sheet | Item number:2002-2611

Rated current UL (Use Group C) 6.3 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 6.3 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 6.3 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 76.4mm/ 3.008inch

Depth 93mm/ 3.661inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking L/L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.477 MJ

2002-2611

02.05.2019Page /2 11

Data sheet | Item number:2002-2611

Weight 22.909g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4055143146234

Customs Tariff No. 85369095990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

2002-2611

02.05.2019Page /3 11

Data sheet | Item number:2002-2611

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Jumper

Item no.: 2002-492

Double-deck vertical jumper; insulated

2002-492

Item no.: 2002-492/000-012

Double-deck vertical jumper; insulated

2002-492

/000-012

Item no.: 2004-402

Push-in type jumper bar; insulated; 2-way; Nominal current 32 A

2004-402

Item no.: 2004-403

Push-in type jumper bar; insulated; 3-way; Nominal current 32 A

2004-403

Item no.: 2004-404

Push-in type jumper bar; insulated; 4-way; Nominal current 32 A

2004-404

Item no.: 2004-405

Push-in type jumper bar; insulated; 5-way; Nominal current 32 A

2004-405

Item no.: 2004-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2004-405

/011-000

Item no.: 2004-406

Push-in type jumper bar; insulated; 6-way; Nominal current 32 A

2004-406
