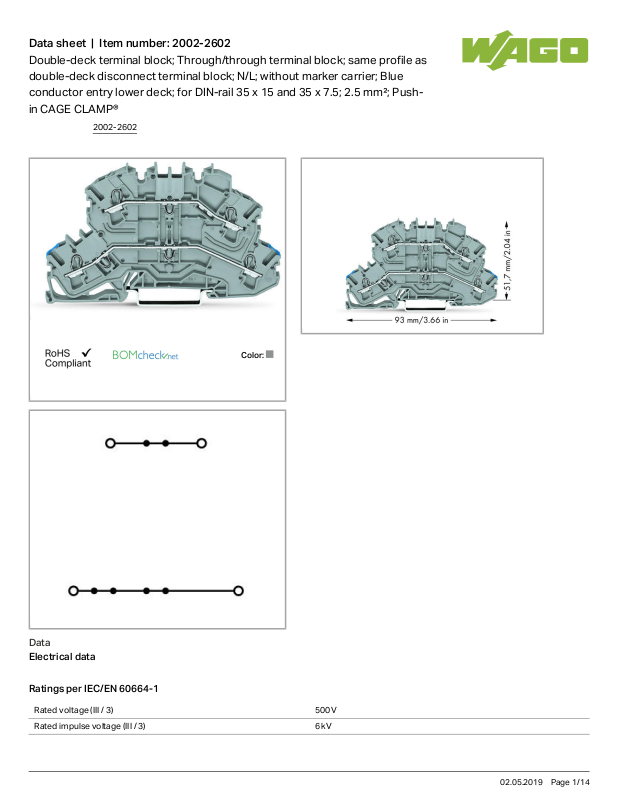

Wago 2002-2602 Data Sheet

Data sheet | Item number:2002-2602

Double-deck terminal block; Through/through terminal block; same profile as
double-deck disconnect terminal block; N/L; without marker carrier; Blue
conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push­in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

2002-2602

02.05.2019Page /1 14

Data sheet | Item number:2002-2602

Rated current 24 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 300V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch

Depth 93mm/ 3.661inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N/L

2002-2602

02.05.2019Page /2 14

Data sheet | Item number:2002-2602

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.264 MJ

Weight 13.854g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821403814

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

2002-2602

02.05.2019Page /3 14

Data sheet | Item number:2002-2602

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

End plate

Item no.: 2002-2691

End and intermediate plate; 1 mm thick

2002-2691

Item no.: 2002-2692

End and intermediate plate; 1 mm thick

2002-2692

General accessories

Item no.: 2002-121

Adaptor

2002-121

Jumper

Item no.: 2002-400

Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A

2002-400

Item no.: 2002-402

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

Item no.: 2002-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-005

Item no.: 2002-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-006

Item no.: 2002-403

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403
