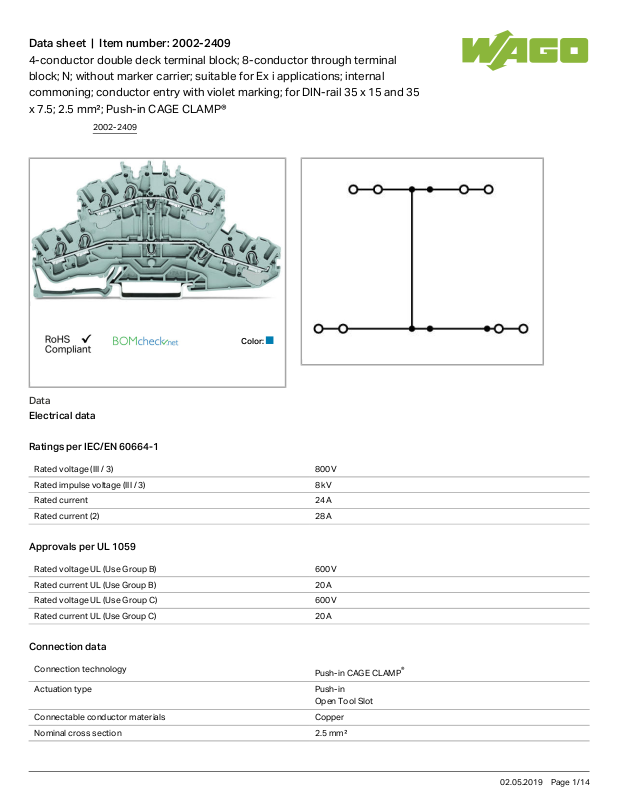

Data sheet | Item number:2002-2409
4-conductor double deck terminal block; 8-conductor through terminal
block; N; without marker carrier; suitable for Ex i applications; internal
commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35
x 7.5; 2.5 mm²; Push-in CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Rated current (2) 28 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 20 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
2002-2409
02.05.2019Page /1 14
Data sheet | Item number:2002-2409
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 8
Total number of potentials 1
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 52.1mm/ 2.051inch
Depth 105.1mm/ 4.138inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking N
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.294 MJ
Weight 16.142g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4050821144830
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
03.0004U
2002-2409
02.05.2019Page /2 14
Data sheet | Item number:2002-2409
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
2002-2409
02.05.2019Page /3 14
Data sheet | Item number:2002-2409
Compatible products
End plate
Item no.: 2002-2491
End and intermediate plate; 0.8 mm thick
2002-2491
Item no.: 2002-2492
End and intermediate plate; 0.8 mm thick
2002-2492
General accessories
Item no.: 2002-121
Adaptor
2002-121
Protective Warning Marker
Item no.: 2002-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2002-115
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
2002-2409
02.05.2019Page /4 14
Data sheet | Item number:2002-2409
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Marking accessories
Item no.: 2002-161
Adaptor
2002-161
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-005
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
2002-2409
02.05.2019Page /5 14
Data sheet | Item number:2002-2409
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
2002-2409
02.05.2019Page /6 14
Data sheet | Item number:2002-2409
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
2002-2409
02.05.2019Page /7 14
Data sheet | Item number:2002-2409
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-006
Item no.: 2002-403
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
Item no.: 2002-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-005
Item no.: 2002-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-006
Item no.: 2002-404
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
2002-2409
02.05.2019Page /8 14
Data sheet | Item number:2002-2409
Item no.: 2002-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-005
Item no.: 2002-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-006
Item no.: 2002-405
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
Item no.: 2002-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-005
Item no.: 2002-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-006
Item no.: 2002-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2002-405
/011-000
Item no.: 2002-406
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
Item no.: 2002-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-005
Item no.: 2002-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-006
Item no.: 2002-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2002-406
/020-000
Item no.: 2002-407
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
Item no.: 2002-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-005
Item no.: 2002-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-006
Item no.: 2002-408
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
Item no.: 2002-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-005
Item no.: 2002-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-006
2002-2409
02.05.2019Page /9 14
Data sheet | Item number:2002-2409
Item no.: 2002-409
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
Item no.: 2002-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
/000-005
Item no.: 2002-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
/000-006
Item no.: 2002-410
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
Item no.: 2002-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
/000-005
Item no.: 2002-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
/000-006
Item no.: 2002-423
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
Item no.: 2002-423/000-005
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
/000-005
Item no.: 2002-423/000-006
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
/000-006
Item no.: 2002-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 25 A
2002-433
Item no.: 2002-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 25 A
2002-434
Item no.: 2002-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 25 A
2002-435
Item no.: 2002-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 25 A
2002-436
Item no.: 2002-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 25 A
2002-437
Item no.: 2002-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 25 A
2002-438
Item no.: 2002-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 25 A
2002-439
Item no.: 2002-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 25 A
2002-440
Item no.: 2002-472
2002-2409
02.05.2019Page /10 14
Data sheet | Item number:2002-2409
Staggered jumper; insulated; 2-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-472
Item no.: 2002-473
Staggered jumper; insulated; 3-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-473
Item no.: 2002-473/011-000
Ready-made staggered jumper; insulated; 2-way (1-3); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-473
/011-000
Item no.: 2002-474
Staggered jumper; insulated; 4-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-474
Item no.: 2002-475
Staggered jumper; insulated; 5-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-475
Item no.: 2002-475/011-000
Ready-made staggered jumper; insulated; 3-way (1-3-5); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-475
/011-000
Item no.: 2002-476
Staggered jumper; insulated; 6-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-476
Item no.: 2002-477
Staggered jumper; insulated; 7-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-477
Item no.: 2002-477/011-000
Ready-made staggered jumper; insulated; 1-3-5-7; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking
2002-477
/011-000
Item no.: 2002-478
Staggered jumper; insulated; 8-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-478
Item no.: 2002-479
Staggered jumper; insulated; 9-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-479
Item no.: 2002-479/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking
2002-479
/011-000
Item no.: 2002-480
Staggered jumper; insulated; 10-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-480
Item no.: 2002-481
Staggered jumper; insulated; 11-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-481
Item no.: 2002-481/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9-11; Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-481
/011-000
Item no.: 2002-482
Staggered jumper; insulated; 12-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-482
2002-2409
02.05.2019Page /11 14
Data sheet | Item number:2002-2409
Item no.: 2002-492
Double-deck vertical jumper; insulated
2002-492
Item no.: 2002-492/000-012
Double-deck vertical jumper; insulated
2002-492
/000-012
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-005
Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-006
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-246
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-264
2002-2409
02.05.2019Page /12 14
Data sheet | Item number:2002-2409
crimped; acc. to DIN 46228, Part 4/09.90
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-266
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2002-172
check
Item no.: 2002-611
TOPJOB®S L-type test plug module; modular; 1-pole
2002-611
Item no.: 2002-649
TOPJOB®S L-type spacer module; modular; e.g., for bridging commoned terminal blocks
2002-649
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
tools
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Downloads
Documentation
Bid Text
2002-2409 docx
15.4 kB
Download
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2002-2409 URL Download
2002-2409
02.05.2019Page /13 14
Data sheet | Item number:2002-2409
2002-2409
Subject to changes.
02.05.2019Page /14 14
Loading...
