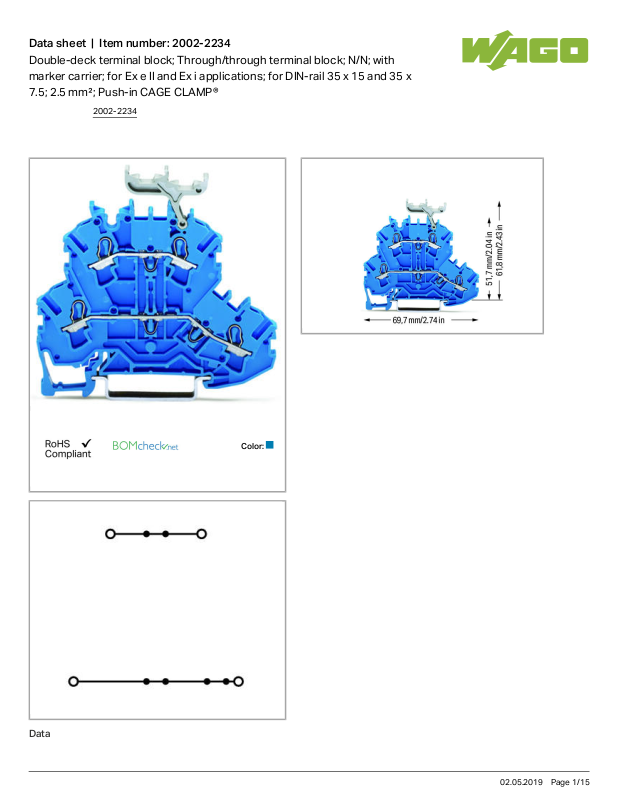

Wago 2002-2234 Data Sheet

Data sheet | Item number:2002-2234

Double-deck terminal block; Through/through terminal block; N/N; with
marker carrier; for Ex e II and Ex i applications; for DIN-rail 35 x 15 and 35 x

7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

2002-2234

02.05.2019Page /1 15

Data sheet | Item number:2002-2234

Data

Electrical data

Rated voltage EN (Ex e II) 440 V

Rated current (Ex e II) 20 A

Rated current (Ex e II) with jumper 18 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Rated current (2) 28 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Rated voltage UL (Use Group D) 600 V

Rated current UL (Use Group D) 5 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Number of connection points (connection type) 2

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Number of connection points 2

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

2002-2234

02.05.2019Page /2 15

Data sheet | Item number:2002-2234

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N/N

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.218 MJ

Weight 10.603g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4044918989794

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 03

ATEX
1162 U (II
2 G/D Ex e
II bzw. I M
2 Ex e I)

IECEx

IEC 60079 IECEx PTB

2002-2234

02.05.2019Page /3 15

Data sheet | Item number:2002-2234

Physikalisch Technische Bundesanstalt 03.0004U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

2002-2234

02.05.2019Page /4 15

Data sheet | Item number:2002-2234

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730
