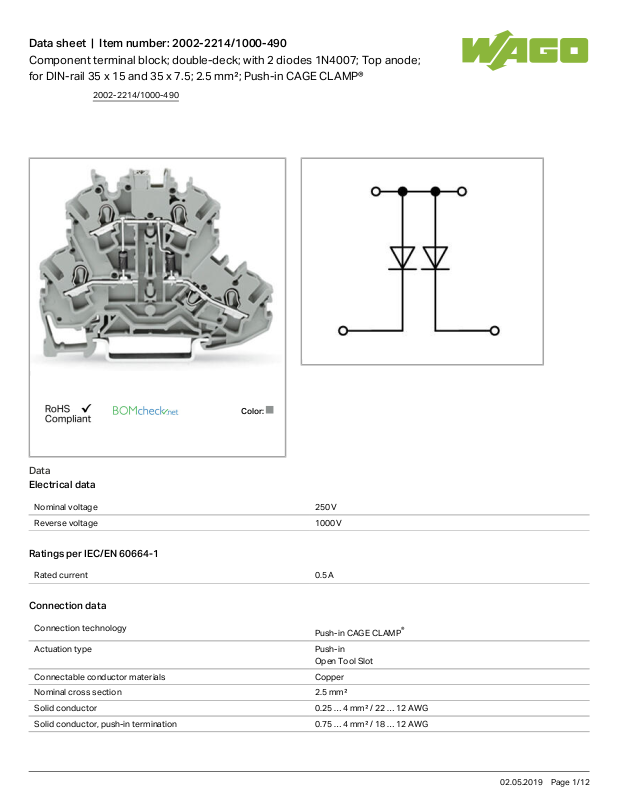

Wago 2002-2214/1000-490 Data Sheet
Data sheet | Item number:2002-2214/1000-490
Component terminal block; double-deck; with 2 diodes 1N4007; Top anode;
for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®
Color:
Data
Electrical data
Nominal voltage 250 V
Reverse voltage 1000V
Ratings per IEC/EN 60664-1
Rated current 0.5 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
2002-2214/1000-490
02.05.2019Page /1 12
Data sheet | Item number:2002-2214/1000-490
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 3
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch
Depth 69.7mm/ 2.744inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.234 MJ
Weight 10.5g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4045454375638
Customs Tariff No. 85369010000
