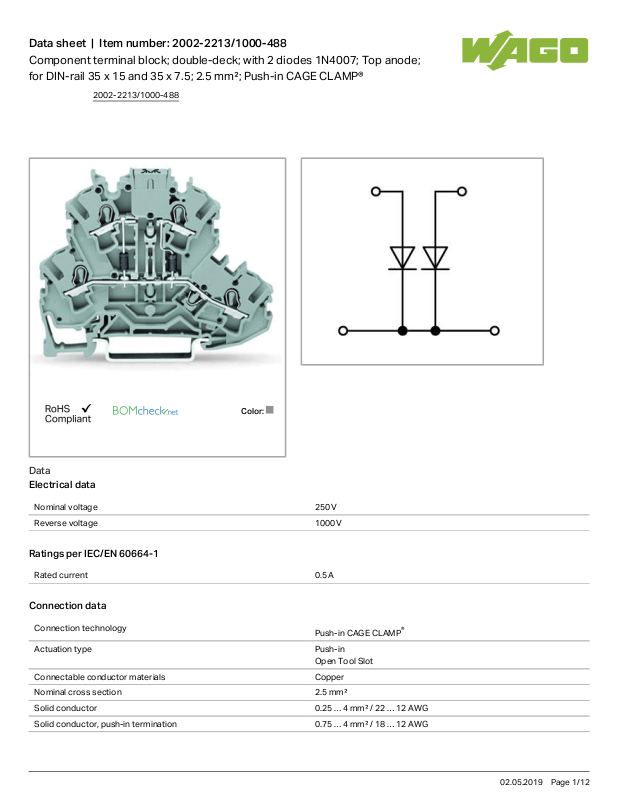

Wago 2002-2213/1000-488 Data Sheet

Data sheet | Item number:2002-2213/1000-488

Component terminal block; double-deck; with 2 diodes 1N4007; Top anode;
for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Nominal voltage 250 V

Reverse voltage 1000V

Ratings per IEC/EN 60664-1

Rated current 0.5 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

2002-2213/1000-488

02.05.2019Page /1 12

Data sheet | Item number:2002-2213/1000-488

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.238 MJ

Weight 10.6g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454375614

Customs Tariff No. 85369010000
