Wago 2002-2209 Data Sheet

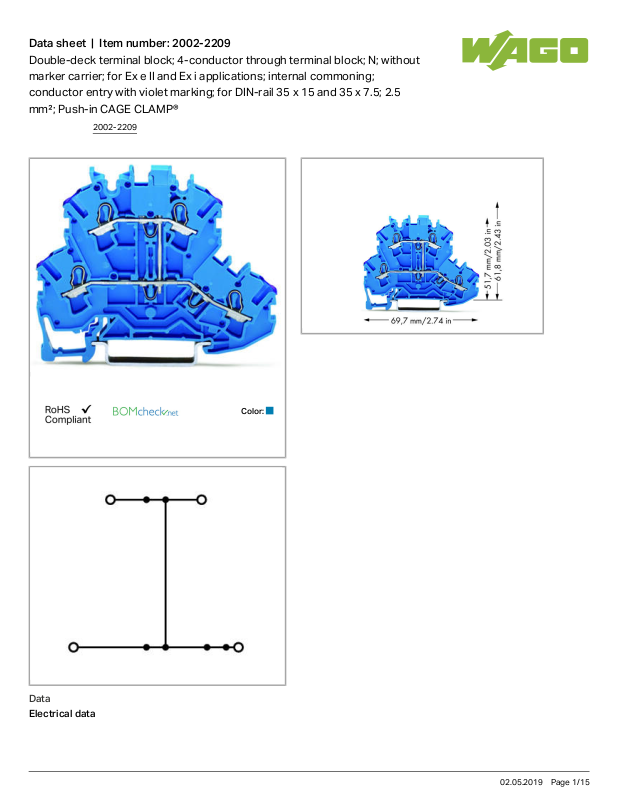

Data sheet | Item number:2002-2209

Double-deck terminal block; 4-conductor through terminal block; N; without
marker carrier; for Ex e II and Ex i applications; internal commoning;
conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5
mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

2002-2209

02.05.2019Page /1 15

Data sheet | Item number:2002-2209

Rated voltage EN (Ex e II) 440 V

Rated current (Ex e II) 20 A

Rated current (Ex e II) with jumper 18 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Rated current (2) 28 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20 A

Rated voltage UL (Use Group D) 600 V

Rated current UL (Use Group D) 5 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch

Depth 69.7mm/ 2.744inch

2002-2209

02.05.2019Page /2 15

Data sheet | Item number:2002-2209

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.209 MJ

Weight 10.716g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4044918691116

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 03

ATEX
1162 U (II
2 G/D Ex e
II bzw. I M
2 Ex e I)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

03.0004U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

2002-2209

02.05.2019Page /3 15

Data sheet | Item number:2002-2209

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

Compatible products

2002-2209

02.05.2019Page /4 15

Data sheet | Item number:2002-2209

Jumper

Item no.: 2002-400

Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A

2002-400

Item no.: 2002-402

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

Item no.: 2002-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-005

Item no.: 2002-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-006

Item no.: 2002-403

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

Item no.: 2002-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-005

Item no.: 2002-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-006

Item no.: 2002-404

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

Item no.: 2002-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-005

Item no.: 2002-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-006

Item no.: 2002-405

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

Item no.: 2002-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-005

Item no.: 2002-405/000-006

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-006

Item no.: 2002-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2002-405

/011-000
