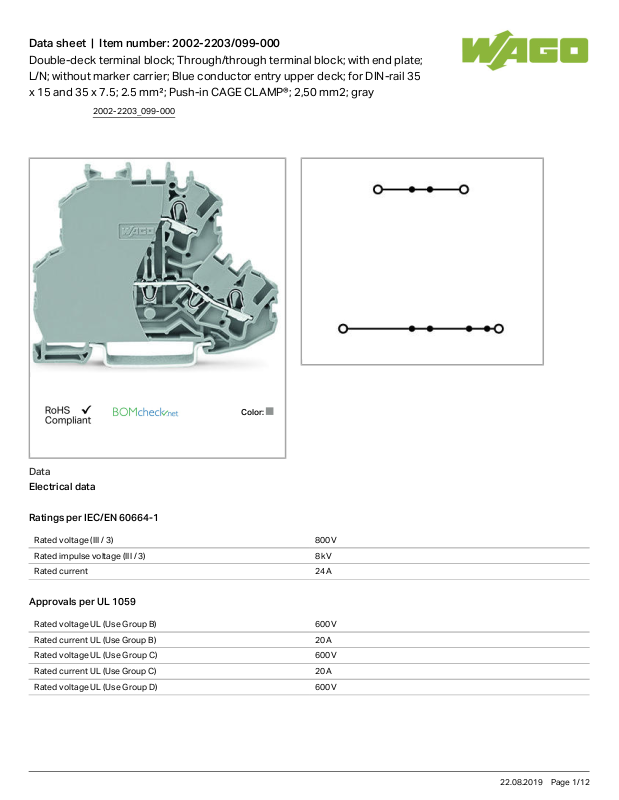

Wago 2002-2203/099-000 Data Sheet

Data sheet | Item number:2002-2203/099-000

Double-deck terminal block; Through/through terminal block; with end plate;
L/N; without marker carrier; Blue conductor entry upper deck; for DIN-rail 35
x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20 A

Rated voltage UL (Use Group D) 600 V

2002-2203_099-000

22.08.2019Page /1 12

Data sheet | Item number:2002-2203/099-000

Connection data

Connection technology

Push-in CAGE CLAMP

®

Number of connection points (connection type) 2

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Number of connection points 2

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking L/N

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.296 MJ

Weight 13.203g

Commercial data

Country of origin DE

GTIN 4050821299011

2002-2203_099-000

22.08.2019Page /2 12

Data sheet | Item number:2002-2203/099-000

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2198985.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

EN 60947 38586/A0 BV

2002-2203_099-000

22.08.2019Page /3 12

Data sheet | Item number:2002-2203/099-000

Bureau Veritas S.A.

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7704

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730
