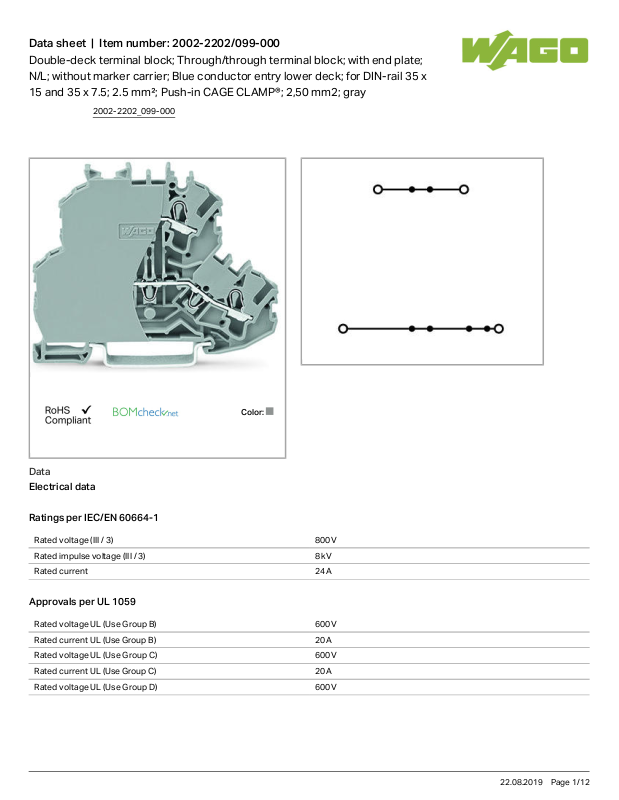

Data sheet | Item number:2002-2202/099-000
Double-deck terminal block; Through/through terminal block; with end plate;
N/L; without marker carrier; Blue conductor entry lower deck; for DIN-rail 35 x
15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm2; gray
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 20 A
Rated voltage UL (Use Group D) 600 V
2002-2202_099-000
22.08.2019Page /1 12
Data sheet | Item number:2002-2202/099-000
Connection data
Connection technology
Push-in CAGE CLAMP
®
Number of connection points (connection type) 2
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 4mm²/ 22 12AWG
Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG
Fine-stranded conductor 0.25 4mm²/ 22 12AWG
Strip length 10 12mm/ 0.39 0.47inch
Number of connection points 2
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch
Depth 69.7mm/ 2.744inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking N/L
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.296 MJ
Weight 13.203g
Commercial data
Country of origin DE
GTIN 4050821299004
2002-2202_099-000
22.08.2019Page /2 12
Data sheet | Item number:2002-2202/099-000
Customs Tariff No. 85369010000
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2198985.01
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
EN 60947 38586/A0 BV
2002-2202_099-000
22.08.2019Page /3 12
Data sheet | Item number:2002-2202/099-000
Bureau Veritas S.A.
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7704
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
Compatible products
Jumper
Item no.: 2002-492
Double-deck vertical jumper; insulated; light gray
2002-492
Item no.: 2002-492/000-012
Double-deck vertical jumper; insulated; orange
2002-492
/000-012
Item no.: 2004-402
Push-in type jumper bar; insulated; 2-way; Nominal current 32 A; light gray
2004-402
Item no.: 2004-403
Push-in type jumper bar; insulated; 3-way; Nominal current 32 A; light gray
2004-403
2002-2202_099-000
22.08.2019Page /4 12
Data sheet | Item number:2002-2202/099-000
Item no.: 2004-404
Push-in type jumper bar; insulated; 4-way; Nominal current 32 A; light gray
2004-404
Item no.: 2004-405
Push-in type jumper bar; insulated; 5-way; Nominal current 32 A; light gray
2004-405
Item no.: 2004-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2004-405
/011-000
Item no.: 2004-406
Push-in type jumper bar; insulated; 6-way; Nominal current 32 A; light gray
2004-406
Item no.: 2004-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray
2004-406
/020-000
Item no.: 2004-407
Push-in type jumper bar; insulated; 7-way; Nominal current 32 A; light gray
2004-407
Item no.: 2004-408
Push-in type jumper bar; insulated; 8-way; Nominal current 32 A; light gray
2004-408
Item no.: 2004-409
Push-in type jumper bar; insulated; 9-way; Nominal current 32 A; light gray
2004-409
Item no.: 2004-410
Push-in type jumper bar; insulated; 10-way; Nominal current 32 A; light gray
2004-410
Item no.: 2004-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 32 A; light gray
2004-433
Item no.: 2004-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 32 A; light gray
2004-434
Item no.: 2004-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 32 A; light gray
2004-435
Item no.: 2004-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 32 A; light gray
2004-436
Item no.: 2004-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 32 A; light gray
2004-437
Item no.: 2004-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 32 A; light gray
2004-438
Item no.: 2004-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 32 A; light gray
2004-439
Item no.: 2004-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 32 A; light gray
2004-440
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-414
2002-2202_099-000
22.08.2019Page /5 12
Data sheet | Item number:2002-2202/099-000
Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; red
2009-414
/000-005
Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; blue
2009-414
/000-006
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
check
Item no.: 2002-611
TOPJOB®S L-type test plug module; modular; 1-pole; 2,50 mm2; gray
2002-611
Item no.: 2002-649
TOPJOB®S L-type spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2002-649
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip; dark gray
2002-172
tools
Item no.: 210-658
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft; angled; short
210-658
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
210-720
General accessories
Item no.: 2002-121
Adaptor
2002-121
Protective Warning Marker
Item no.: 2002-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
2002-115
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
2002-2202_099-000
22.08.2019Page /6 12
Data sheet | Item number:2002-2202/099-000
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715 210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silvercolored
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; coppercolored
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black
216-244
Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue
216-246
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red
216-263
2002-2202_099-000
22.08.2019Page /7 12
Data sheet | Item number:2002-2202/099-000
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black
216-264
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue
216-266
Marking accessories
Item no.: 2002-161
Adaptor
2002-161
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-115
/000-005
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-135
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-135
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
2002-2202_099-000
22.08.2019Page /8 12
Data sheet | Item number:2002-2202/099-000
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
2002-2202_099-000
22.08.2019Page /9 12
Data sheet | Item number:2002-2202/099-000
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type; white
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type; yellow
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red
793-5501
/000-005
2002-2202_099-000
22.08.2019Page /10 12
Data sheet | Item number:2002-2202/099-000
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; brown
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet
793-5501
/000-024
Downloads
Documentation
Bid Text
2002-2202/099-000 docx
15.3 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2002-2202/099-000 URL Download
EPLAN
EPLAN Data Portal Download
WSCAD
WSCAD Universe Download
2002-2202_099-000
22.08.2019Page /11 12
Data sheet | Item number:2002-2202/099-000
2002-2202_099-000
Subject to changes.
22.08.2019Page /12 12
Loading...
