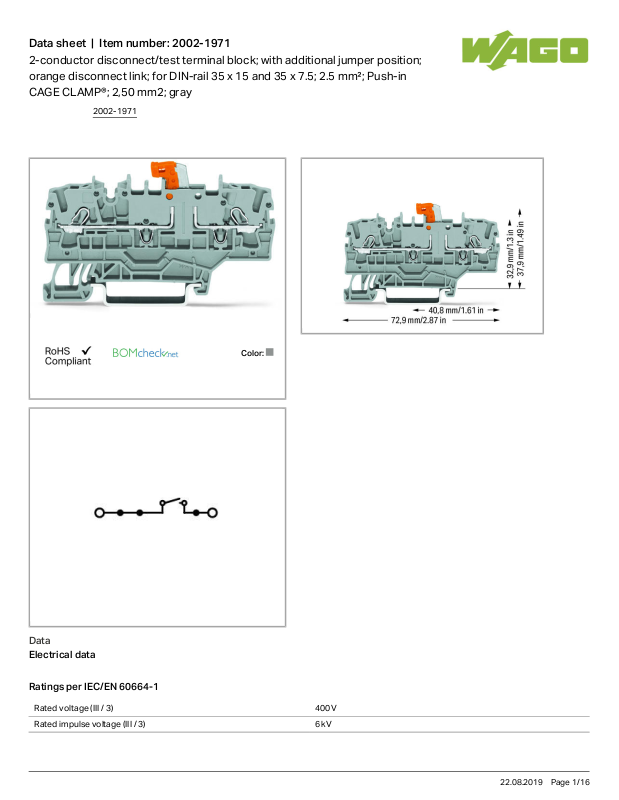

Wago 2002-1971 Data Sheet

Data sheet | Item number:2002-1971

2-conductor disconnect/test terminal block; with additional jumper position;
orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in
CAGE CLAMP®; 2,50 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

2002-1971

22.08.2019Page /1 16

Data sheet | Item number:2002-1971

Rated current 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 3

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 72.9mm/ 2.87inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

2002-1971

22.08.2019Page /2 16

Data sheet | Item number:2002-1971

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.168 MJ

Weight 8.297g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4055143197113

Customs Tariff No. 85365080990
